48-core metal type indoor fiber optic cable distribution box outdoor application
- FDP-M-SC/UPC-48D
- 48-core metal fiber optic cable distribution box, outdoor application
- email communication
- Wire transfer 100%
- carton
- Shanghai/Ningbo
- Fiber Home
- Wuhan
| Quantity: | |
|---|---|
02_ODF rack-network cabinet-fiber optic cabinet-optical passive components.pdf
--- Optical splitter integrated fiber distribution box
The fiber distribution box (optical fiber DP box) series products of Fiberhome pre-installed optical splitters use imported high-quality ABS/PC plastic alloy materials, and adopt the structural design of light splitting and fiber splitting. In this box, the distribution cables pass through The splitters pre-installed in the factory branch the optical path and directly distribute the incoming optical cables.
●Fiberhome DP box series products have the following characteristics:
-Splitter integrated design, beautiful appearance, neat and standardized internal wiring
- Reasonable function, convenient operation, suitable for installment access users, easy to maintain
-Splitters are pre-installed in the factory to reduce on-site assembly time
- 100% of the products have passed the insertion loss test after assembly before leaving the factory, eliminating the faults caused by improper installation in the later stage
- The distribution optical cable can be pulled out to reduce the number of distribution optical cable transfers and reduce line loss
- Indoor and outdoor box structure, convenient for circuit design and construction

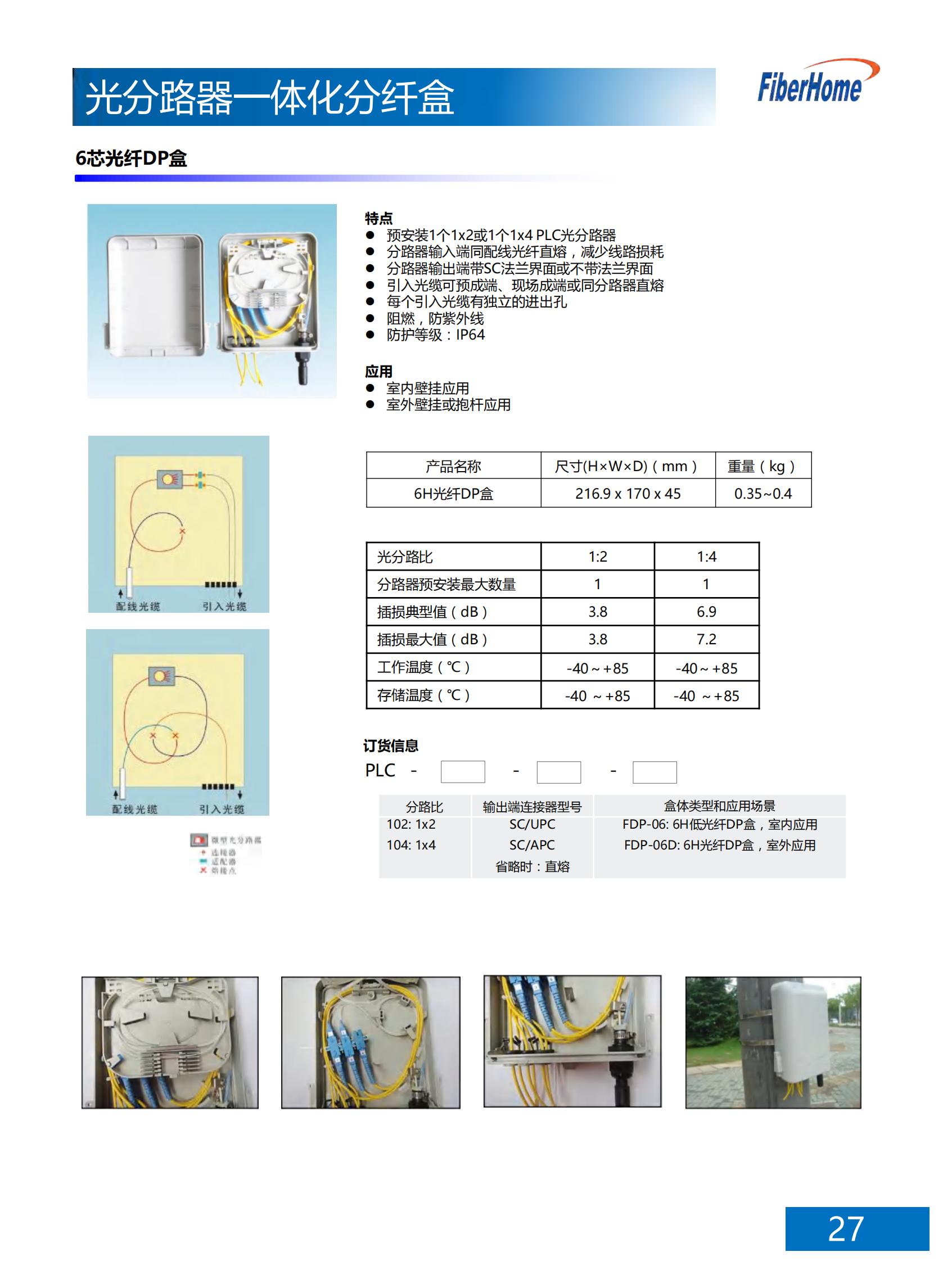

---Features of 6-core fiber optic DP box
●Pre-installed a 1x2 or a 1x4 PLC optical splitter
The input end of the splitter is directly fused with the distribution fiber to reduce line loss
●Splitter output end with SC flange interface or without flange interface
The incoming optical cable can be pre-terminated, on-site terminated or directly fused with the splitter
●Each incoming fiber optic cable has an independent entrance and exit hole
●Flame retardant, UV protection
●Protection grade: IP64
---application
●Indoor wall hanging application
●Outdoor wall or pole application

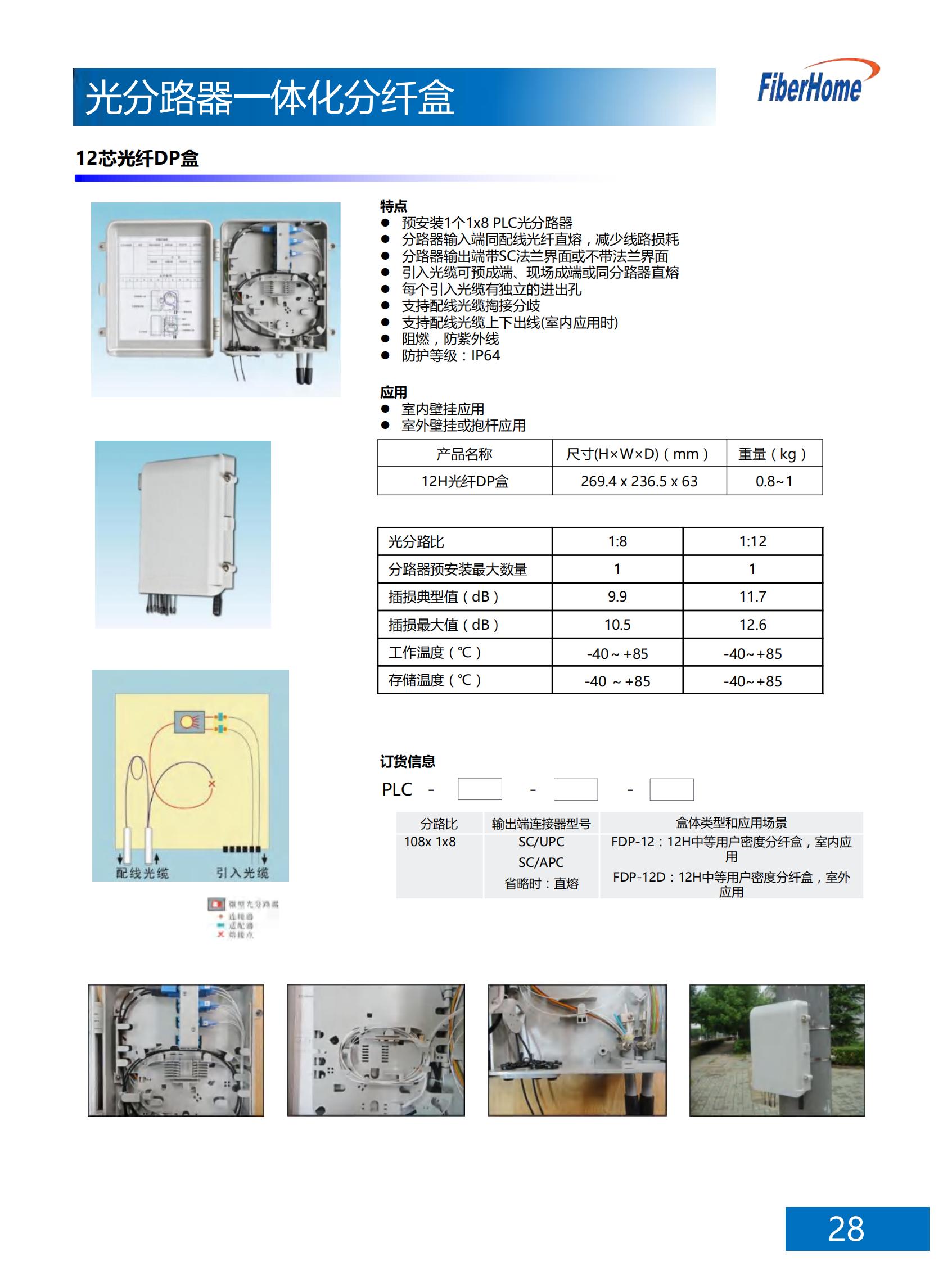

---Features of 12-core fiber optic DP box
●Pre-installed a 1x8 PLC optical splitter
The input end of the splitter is directly fused with the distribution fiber to reduce line loss
●Splitter output end with SC flange interface or without flange interface
The incoming optical cable can be pre-terminated, on-site terminated or directly fused with the splitter
●Each incoming fiber optic cable has an independent entrance and exit hole
●Support the divergence of wiring cables
●Support the upper and lower outlets of distribution optical cables (for indoor applications)
●Flame retardant, UV protection
●Protection grade: IP64
---Please refer to the PDF file for the characteristics of other XX core fiber optic fiber optic DP boxes
