ODF101-144-A7 ODF optical fiber distribution frame (144-core wall hanging type without sub-frame type without splice tray)
- ODF101-144-A7
- Fusion and distribution integrated ODF optical fiber distribution frame 144 cores only main frame wall hanging type
- 6240 (rmb/1 unit)
- Wire transfer 100%
- carton
- Shanghai/Ningbo
- Fiber Home
- Wuhan
| Quantity: | |
|---|---|

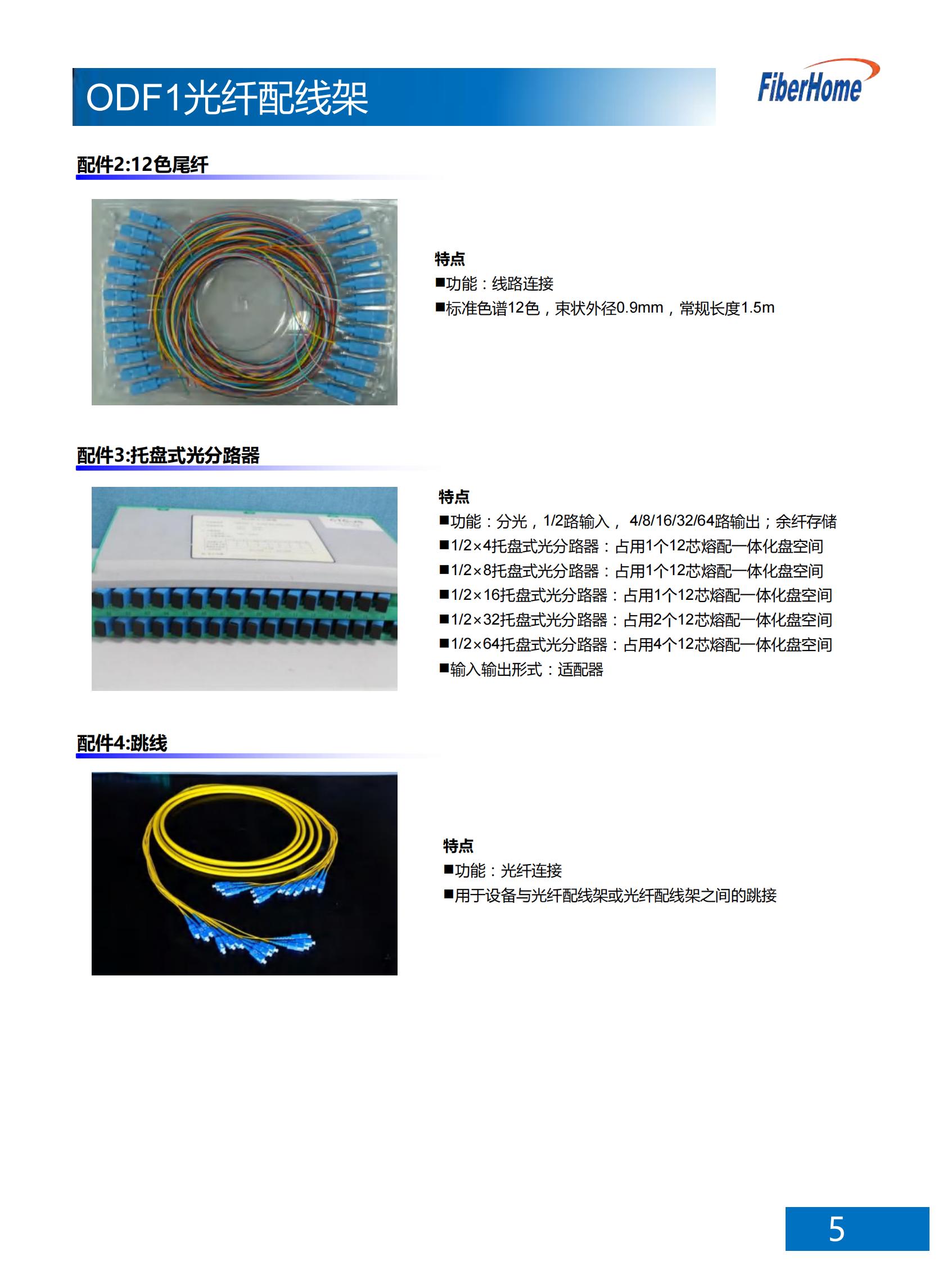

02_ODF rack-network cabinet-fiber optic cabinet-optical passive components.pdf
---ODF1 series fusion integrated optical fiber distribution frame
ODF1 series optical fiber distribution frame is a series of optical fiber distribution frames that integrate optical fiber fusion splicing and wiring. It adopts 12-core fusion-integrated modules and has
Large, high-density features.The capacity, connectoradapter type can be flexibly configured according to user needs.The rack provides cable fixation and protection, optical
The functions of fiber splicing, fiber adjustment and jumper storage can also be equipped with a tray splitter to meet the optical splitting function.
---Features
●Indoor floor or wall installation
●Connect the jumper fiber and backbone fiber optic cable from the side of the central office equipment
●Full front operation mode, fully enclosed structure
●Removable back panel for easy back-to-back management
●Full modular design, using 12-core fusion splicing wiring - -integrated module
●Enough fiber wiring space to ensure the bending radius of the fiber
●The fiber inlet and fiber outlet routes are separated without interfering with each other
Can install spectroscopic module (fully compatible with fusion-body module installation size)
---application
There are fiber inlet holes on the top and bottom of the rack, and cables can be routed up and down
Optical Fiber Access Network Central Office
Intelligent Building
Central computer room
---Specification
Applicable fiber optic cable types: trunk fiber optic cable, east-shaped single-core fiber optic cable or multi-core ribbon fiber optic cable
Configuration: 12-core fusion integrated tray
color: gray
Material: anti-rust plate, suitable for the working environment of the computer room
Working temperature: -25C ~ +55C
---Main frame body
| serial number | model | installation method | Maximum capacity (core) | Number of splicing trays | storage unit | Dimensions (mm) |
| 1 | ODF101-864-A1 | Floor type | 864 | 72 | / | 2600×840×300 |
| 2 | ODF101-720-A2 | Floor type | 720 | 60 | / | 2200×840×300 |
| 3 | ODF101-576-A3 | Floor type | 576 | 48 | / | 2000×840×300 |
| 4 | ODF101-576-A4 | Floor type | 576 | 48 | 4 | 2600×840×300 |
| 5 | ODF101-504-A5 | Floor type | 504 | 42 | 3 | 2200×840×300 |
| 6 | ODF101-288-A6 | Floor type | 288 | 24 | 4 | 2000×840×300 |
| 7 | ODF101-144-A7 | Floor type | 144 | 12 | / | 700×840×300 |
FiberHomeProduct Promotion Sales Center Hangzhou Four Sea Fiber Network Co., Ltd. url https://fiberhome.ltd mail sales@fiberhome.ltd
