1TS2U-160
Two-stage cylindrical helical gearbox
sales@wgt.net.cn
100% T/T
wooden box
Shanghai/Ningbo
WGT
China
SKU: | |
---|---|
Availability: | |
Quantity: | |
---Product introduction
Helical gearbox 1Ts2U-160 with a center distance of 160 mm.It has four helical gears in two transmission stages.This scheme offers gear ratios up to 1/40 while maintaining 97% efficiency when only 3-4% of the power goes into heat.The input shaft speed is up to 1800 rpm, which makes it compatible with the most common general purpose industrial electric motors with a speed of 1500 rpm.The torque is 1250 Nm.The scope of application is general mechanical manufacturing equipment requiring a large amount of drive power.
The Ts2U-160 is built according to the classic layout, splitting the crankcase in two at the compression point of the bearing housing.
---Technical Parameters
The type of gear pair is a two-stage cylindrical transmission.
The axis alignment of the shafts in space is parallel.
Gear ratios - 8; 10; 12.5; 16; 20; 25; 31.5;40.
Center distance - 160 mm.
Mounting method - claws with through holes.
The input shaft type is cylindrical or tapered.
The output shaft types are cylindrical, tapered and hollow.
Rated speed of the output shaft - not to exceed 1500 rpm.
Rated torque on low speed shaft - 1250 Nm.
Climatic conditions of operation - U, O, UHL, T.

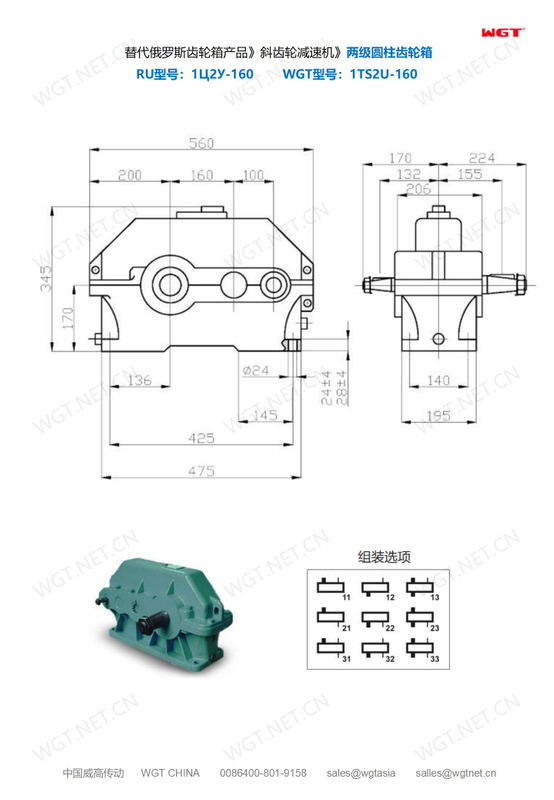

Dimensions (LxHxW) - 557x206x345 mm.
The weight of the gearbox without oil is 95 kg.
