WGT_ML series industrial gearboxes: technological innovation drives industrial transmission upgrade
In today's pursuit of efficient and reliable industrial transmission equipment, the ML series industrial gearbox launched by the company has become a high-value choice to replace the traditional SEW_ML series with the core design concept of 'reliability, efficiency and intelligence'. With the three major technological breakthroughs of topological shape modification technology, dynamic load distribution technology, and intelligent monitoring integration. Its core value is reflected in the following dimensions:
1. Design concept and technological breakthroughs
| Innovation direction | technical details | performance improvement |
| Power density optimization | Adopt topological shape modification technology, combined with lightweight box design | Torque density increased by 30%, volume decreased by 25% |
| Dynamic load distribution technology | Tooth profile/tooth direction bidirectional shape modification, optimize contact stress distribution | The vibration value is reduced by 40% (ISO10816 standard), full load noise ≤75dB(A) (1 meter), and the operation stability is improved |
| Intelligent monitoring integration | Oil quality sensor + vibration monitoring module, real-time feedback on the equipment status | Maintenance interval is extended by 50%, and fault warning response speed is increased by 60% |
2. Materials and design innovation
1. Material System
Box: HT300 gray cast iron + Q345 welded structure, torsional stiffness increased by 30%
Gear: 18CrNiMo7-6 alloy steel, tooth surface hardness 58~62HRC, ISO6 level accuracy
Shaft: 42CrMo alloy steel, surface hardness HRC58~62
2. Bearing system
High-speed shaft bearings: German, Japanese and American (NSK/NTN/SKF/FAG)
Low speed shaft bearing: China series (Harbin shaft/wall shaft/Luo shaft)
Oil seal brand: Taiwan series (NAK/WKF/KMK)
Lifespan: L10 lifespan exceeds 80,000 hours (ISO281 standard), reliability is improved by 40%
3. Lubrication system
Modular design: supports oil mist/forced circulation/jet lubrication switching, adapted to multiple operating conditions
Intelligent management: Integrated oil temperature and noise monitoring module (optional) to achieve predictive maintenance
3. Application scenarios and customization
Core scenario coverage:
Port machinery: Anti-sea wind corrosion coating, adapted to high salt spray environment (C5-M grade)
Metallurgical rolling mill: Synchronous accuracy ±0.02mm, rolling force volatility ≤1.5%
Mining equipment: heavy load impact optimization, bearing life increased by 35%
Cement building materials: 24/7 continuous operation design, temperature adaptive control (-30℃~80℃)
Customized services:
Supports customization of center distance/speed ratio/flange interface
Provides expansion solutions such as ATEX explosion-proof, DNV-GL classification society certification, etc.
4. Full life cycle value
Cost Optimization:
TCO reduced by 22%: Improved efficiency and long-life design, better cost of use cycles
Environmental contribution: lubricant consumption is reduced by 40%, comply with the EU Eco-design directive
Installation and maintenance:
Horizontal boxing surface design: quick disassembly and assembly, and maintenance time is reduced by 60%.
Rich options: Support plug and play extensions to reduce downtime
Select the core value of WGT_ML series
Higher power density: Compact design adapts to space-constrained scenarios
Optimal operational stability: low vibration, low noise, and equipment life is extended by 20%
Stronger environmental adaptability: from extreme cold to high temperature, stable output
Smarter maintenance experience: predictive maintenance, 50% reduction in manual intervention
{[t16]}_ML series industrial gearboxes - drive industrial transmission upgrades with technological innovation, providing global customers with efficient, reliable and sustainable transmission solutions.
31_ML sample replacement SEW Chinese and English.pdf

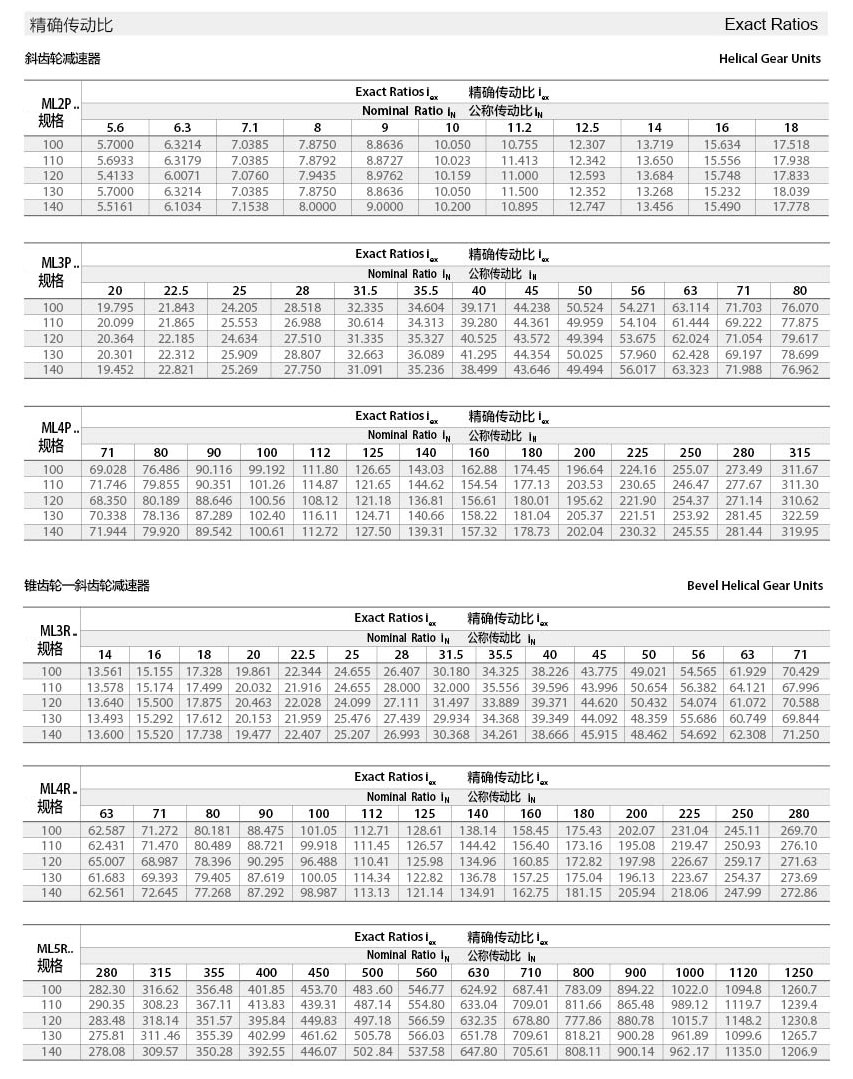

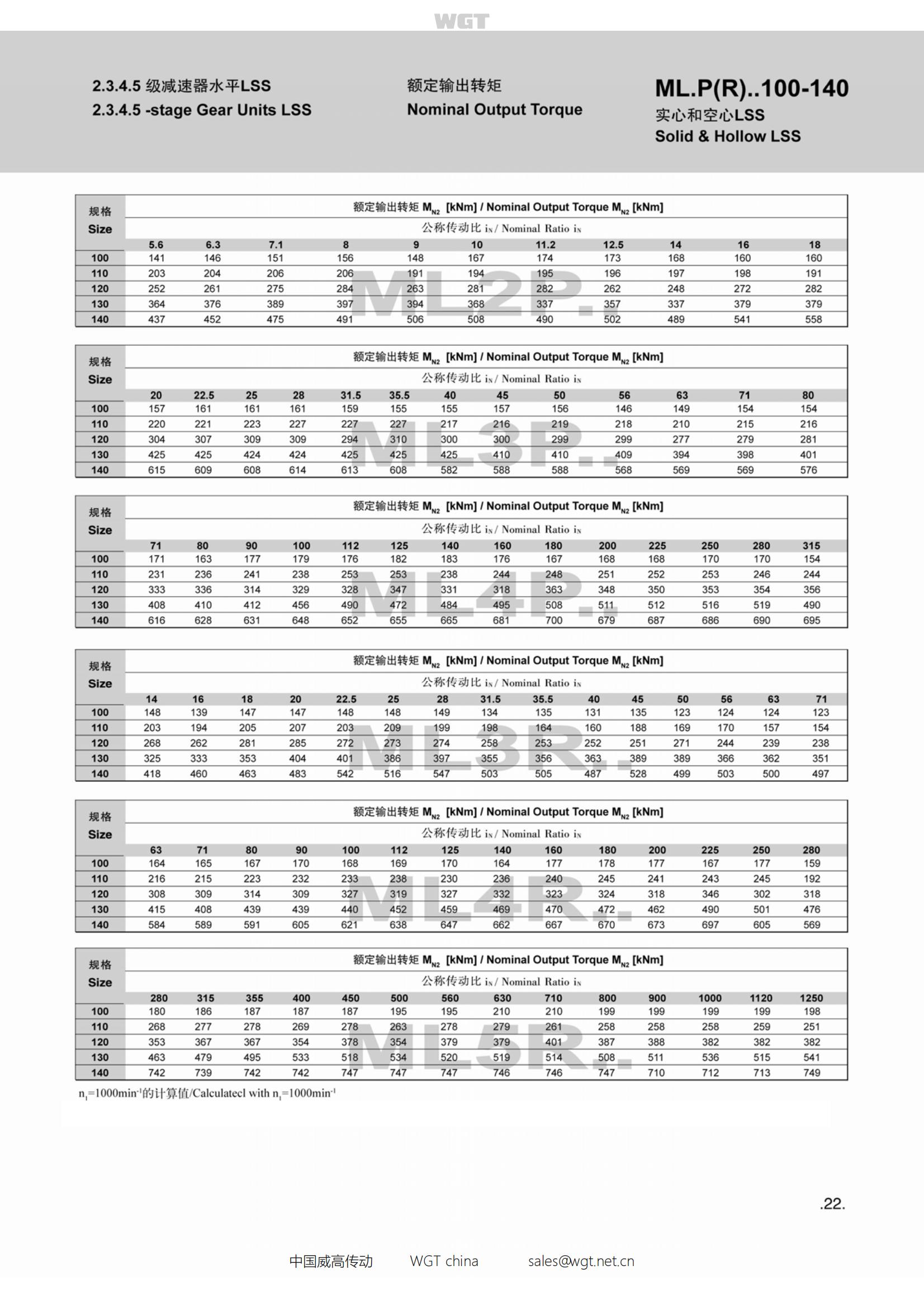

ML series industrial gearbox all models
ML2PSF100 ML2PHF100 ML2PST100 ML2PHT100 ML2PSF110 ML2PHF110 ML2PST110 ML2PHT110
ML2PSF120 ML2PHF120 ML2PST120 ML2PHT120 ML2PSF130 ML2PHF130 ML2PST130 ML2PHT130
ML2PSF140 ML2PHF140 ML2PST140 ML2PHT140 ML2RSF100 ML2RHF100 ML2RST100 ML2RHT100
ML2RSF110 ML2RHF110 ML2RST110 ML2RHT110 ML2RSF120 ML2RHF120 ML2RST120 ML2RHT120
ML2RSF130 ML2RHF130 ML2RST130 ML2RHT130 ML2RSF140 ML2RHF140 ML2RST140 ML2RHT140
ML3PSF100 ML3PHF100 ML3PST100 ML3PSF110 ML3PHF110 ML3PST110 ML3PHT110
ML3PSF120 ML3PHF120 ML3PST120 ML3PHT120 ML3PSF130 ML3PHF130 ML3PST130 ML3PHT130
ML3PSF140 ML3PHF140 ML3PST140 ML3PHT140 ML3RSF100 ML3RHF100 ML3RST100 ML3RHT100
ML3RSF110 ML3RHF110 ML3RST110 ML3RHT110 ML3RSF120 ML3RHF120 ML3RST120 ML3RHT120
ML3RSF130 ML3RHF130 ML3RST130 ML3RHT130 ML3RSF140 ML3RHF140 ML3RST140 ML3RHT140
ML4PSF100 ML4PHF100 ML4PST100 ML4PSF110 ML4PHF110 ML4PST110 ML4PHT110
ML4PSF120 ML4PHF120 ML4PST120 ML4PHT120 ML4PSF130 ML4PHF130 ML4PST130 ML4PHT130
ML4PSF140 ML4PHF140 ML4PST140 ML4PHT140 ML4RSF100 ML4RHF100 ML4RST100 ML4RHT100
ML4RSF110 ML4RHF110 ML4RST110 ML4RHT110 ML4RSF120 ML4RHF120 ML4RST120 ML4RHT120
ML4RSF130 ML4RHF130 ML4RST130 ML4RHT130 ML4RSF140 ML4RHF140 ML4RST140 ML4RHT140
ML5PSF100 ML5PHF100 ML5PST100 ML5PSF110 ML5PHF110 ML5PST110 ML5PHT110
ML5PSF120 ML5PHF120 ML5PST120 ML5PHT120 ML5PSF130 ML5PHF130 ML5PST130 ML5PHT130
ML5PSF140 ML5PHF140 ML5PST140 ML5PHT140 ML5RSF100 ML5RHF100 ML5RST100 ML5RHT100
ML5RSF110 ML5RHF110 ML5RST110 ML5RHT110 ML5RSF120 ML5RHF120 ML5RST120 ML5RHT120
ML5RSF130 ML5RHF130 ML5RST130 ML5RHT130 ML5RSF140 ML5RHF140 ML5RST140 ML5RHT140
