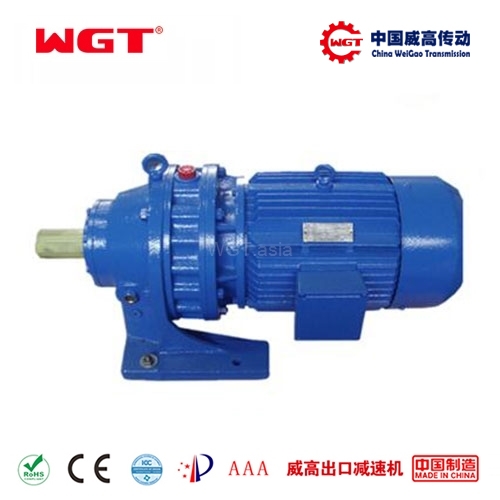

XB series cycloidal pin gear reducer with AC motor

  • BL, BW, BLD, BWD, XL, XW, XLD, XWD

  • $ 500 ~ $ 5000

  • 10 tablets

  • 3 days (1-100 pieces)

  • 50 tablets

  • 30 days (3000 tablets)

  • wire transfer

  • Standard export plywood box

  • Ningbo / Shanghai Port

  • One year

  • WGT

  • Zhejiang, China

SKU:
Availability:
Quantity:

BL, BW, BLD, BWD, XL, XW, XLD, XWD series cycloid reducer

Cycloid gear drives are unique and still unmatched in terms of drive technology. The cycloid reducer is superior to the traditional gear mechanism because it only runs under rolling force and is not affected by shear force. Compared to gears with contact loads, cycloid drives are more resistant

And it can absorb the extreme impact load through the uniform load distribution on the power transmission device

Components. The characteristics of cycloidal geared motors are high reliability and long service life

It has excellent efficiency even under difficult conditions.

characteristic

Advanced in-line drives for reducers and gear motors

Quiet, efficient, reliable operation, high torque density, compact size

Interchangeable cast iron housing for foot, flange or face mounting configuration

Available free shafts, main shaft hollow shafts, C-face adapters, shovel bases and top mounting inputs

Minimal vibration, low noise, low backlash and extended service life

product description Main application industries

Features

-High standard modular design

-High-quality materials ensure product reliability

-High strength, compact size

-long lasting

- high efficiency

-Strong radial load capacity

-High cost performance

-Belt conveyor drive

-Bucket elevator

-Agitator driver

-Hoisting gear drive

-Walking gear transmission

-Paper machine driver

-Dryer driver

-Water screw driver



model
power
Speed ratio
Maximum torque
Output shaft diameter
Input shaft diameter
1 stage
X2 (B0 / B12)
0.37 ~ 1.5
9 ~ 87
150
Φ25 (Φ30)
Φ15
X3 (B1 / B15)
0.55 ~ 2.2
9 ~ 87
250
Φ35
Φ18
X4 (B2 / B18)
0.75 ~ 4.0
9 ~ 87
500
Φ45
Φ22
X5 (B3 / B22)
1.5 ~ 7.5
9 ~ 87
1,000
Φ55
Φ30
X6 (B4 / B27)
2.2 ~ 11
9 ~ 87
2,000
Φ65 (Φ70)
Φ35
X7
3.0 ~ 11
9 ~ 87
2,700
Φ80
Φ40
X8 (B5 / B33)
5.5 ~ 18.5
9 ~ 87
4,500
Φ90
Φ45
X9 (B6 / B39)
7.5 ~ 30
9 ~ 87
7,100
Φ100
Φ50
X10 (B7 / B45)
15 ~ 45
9 ~ 87
12,000
Φ110
Φ55
X11 (B8 / B55)
18.5 ~ 55
9 ~ 87
20,000
Φ130
Φ70
2 stages
X32 (B10)
0.25 ~ 0.55
121 ~ 1849
-
Φ35
Φ15
X42 (B20 / B1812)
0.37 ~ 0.75
121 ~ 1849
-
Φ45
Φ15
X53 (B31 / B2215)
0.55 ~ 1.5
121 ~ 1849
-
Φ55
Φ18
X63 (B41 / B2715)
0.75 ~ 2.2
121 ~ 1849
-
Φ65 (Φ70)
Φ18
X64 (B42 / B2718)
0.75 ~ 2.2
121 ~ 1849
-
Φ65 (Φ70)
Φ22
X74
1.1 ~ 3.0
121 ~ 1849
-
Φ80
Φ22
X84 (B52 / B3318)
1.5 ~ 4.0
121 ~ 1849
-
Φ90
Φ22
X85 (B53 / B3322)
2.2 ~ 5.5
121 ~ 1849
-
Φ90
Φ30
X95 (B63 / B3922)
3.0 ~ 7.5
121 ~ 1849
-
Φ100
Φ30
X106 (B74 / B4527)
4.0 ~ 11
121 ~ 1849
-
Φ110
Φ35


BX cycloid reducer has the following models:

B0(X2)120  B1(X3)150  B2(X4)180  B3(X5)220  B4(X6)270  B5(X8)330

B6(X9)390  B7(X10)450  B8(X11)550  B9(X12)650


BL0(X2)120  BL0(XL2)120  BL0(XW2)120  BL0(XLD2)120  BL0(XWD2)120

BW0(X2)120  BW0(XL2)120  BW0(XW2)120  BW0(XLD2)120  BW0(XWD2)120

BLD0(X2)120  BLD0(XL2)120  BLD0(XW2)120  BLD0(XLD2)120  BLD0(XWD2)120

BWD0(X2)120  BWD0(XL2)120  BWD0(XW2)120  BWD0(XLD2)120  BWD0(XWD2)120


BL1(X3)150  BL1(XL3)150  BL1(XW3)150  BL1(XLD3)150  BL1(XWD3)150

BW1(X3)150  BW1(XL3)150  BW1(XW3)150  BW1(XLD3)150  BW1(XWD3)150

BLD1(X3)150  BLD1(XL3)150  BLD1(XW3)150  BLD1(XLD3)150  BLD1(XWD3)150

BWD1(X3)150  BWD1(XL3)150  BWD1(XW3)150  BWD1(XLD3)150  BWD1(XWD3)150


BL2(X4)180  BL2(XL4)180  BL2(XW4)180  BL2(XLD4)180  BL2(XWD4)180

BW2(X4)180  BW2(XL4)180  BW2(XW4)180  BW2(XLD4)180  BW2(XWD4)180

BLD2(X4)180  BLD2(XL4)180  BLD2(XW4)180  BLD2(XLD4)180  BLD2(XWD4)180

BWD2(X4)180  BWD2(XL4)180  BWD2(XW4)180  BWD2(XLD4)180  BWD2(XWD4)180


BL3(X5)220  BL3(XL5)220  BL3(XW5)220  BL3(XLD5)220  BL3(XWD5)220

BW3(X5)220  BW3(XL5)220  BW3(XW5)220  BW3(XLD5)220  BW3(XWD5)220

BLD3(X5)220  BLD3(XL5)220  BLD3(XW5)220  BLD3(XLD5)220  BLD3(XWD5)220

BWD3(X5)220  BWD3(XL5)220  BWD3(XW5)220  BWD3(XLD5)220  BWD3(XWD5)220


BL4(X6)270  BL4(XL6)270  BL4(XW6)270  BL4(XLD6)270  BL4(XWD6)270

BW4(X6)270  BW4(XL6)270  BW4(XW6)270  BW4(XLD6)270  BW4(XWD6)270

BLD4(X6)270  BLD4(XL6)270  BLD4(XW6)270  BLD4(XLD6)270  BLD4(XWD6)270

BWD4(X6)270  BWD4(XL6)270  BWD4(XW6)270  BWD4(XLD6)270  BWD4(XWD6)270


BL5(X8)330  BL5(XL8)330  BL5(XW8)330  BL5(XLD8)330  BL5(XWD8)330

BW5(X8)330  BW5(XL8)330  BW5(XW8)330  BW5(XLD8)330  BW5(XWD8)330

BLD5(X8)330  BLD5(XL8)330  BLD5(XW8)330  BLD5(XLD8)330  BLD5(XWD8)330

BWD5(X8)330  BWD5(XL8)330  BWD5(XW8)330  BWD5(XLD8)330  BWD5(XWD8)330


BL6(X9)390  BL6(XL3)390  BL6(XW9)390  BL6(XLD9)390  BL6(XWD9)390

BW6(X9)390  BL6(XL3)390  BL6(XW9)390  BL6(XLD9)390  BL6(XWD9)390

BLD6(X9)390  BL6(XL3)390  BL6(XW9)390  BL6(XLD9)390  BL6(XWD9)390

BWD6(X9)390  BL6(XL3)390  BL6(XW9)390  BL6(XLD9)390  BL6(XWD9)390


BL7(X10)450  BL7(XL10)450  BL7(XW10)450  BL7(XLD10)450  BL7(XWD10)450

BW7(X10)450  BW7(XL10)450  BW7(XW10)450  BW7(XLD10)450  BW7(XWD10)450

BLD7(X10)450  BLD7(XL10)450  BLD7(XW10)450  BLD7(XLD10)450  BLD7(XWD10)450

BWD7(X10)450  BWD7(XL10)450  BWD7(XW10)450  BWD7(XLD10)450  BWD7(XWD10)450


BL8(X11)550  BL8(XL11)550  BL8(XW11)550  BL8(XLD11)550  BL8(XWD11)550

BW8(X11)550  BW8(XL11)550  BW8(XW11)550  BW8(XLD11)550  BW8(XWD11)550

BLD8(X11)550  BLD8(XL11)550  BLD8(XW11)550  BLD8(XLD11)550  BLD8(XWD11)550

BWD8(X11)550  BWD8(XL11)550  BWD8(XW11)550  BWD8(XLD11)550  BWD8(XWD11)550


BL9(X12)650  BL9(XL12)650  BL9(XW12)650  BL9(XLD12)650  BL9(XWD12)650

BW9(X12)650  BW9(XL12)650  BW9(XW12)650  BW9(XLD12)650  BW9(XWD12)650

BLD9(X12)650  BLD9(XL12)650  BLD9(XW12)650  BLD9(XLD12)650  BLD9(XWD12)650

BWD9(X12)650  BWD9(XL12)650  BWD9(XW12)650  BWD9(XLD12)650  BWD9(XWD12)650




Parameter A.jpg


LVKTF04Y5PEVY% DXV

product name: B / X series cycloid reducer
colour: Blue, silver or customized
material: Bearing steel
Heat treatment: Quenching
Shell material HT200
Bearing material: SKF
certificate: ROHS, IS09001
package: Standard export packaging (cotton blanket + wooden box)
Guarantee: 1 year


application:

Metallurgy, coal / mining industry. Cement, chemical industry, energy, electricity

Electricity, paper industry, sugar industry, port, lifting and construction

Machinery, rubber / plastic

Type / Model

X2, X3, X4, X5, X6, X7, X9, X9, X10, X11, XE31, XE42, XE53, XE63, XE64, XE74, XE84, XE85, XE95, XE106, XE117

B0, B1, B2, B3, B4, B5, B6, B7, B8, B10, B21, B31, B41, B42, B52, B53, B63, B74, B85

JXJ0, JXJ1, JXJ2, JXJ3, JXJ4, JXJ5, JXJ6, JXJ7, JXJ8, JXJE10, JXJE21

B12, B15, B18, B22, B27, B33, B39, B45, B55, B1812, B2215, B2715, B2718, B3318, B3322, B3922, B5527

XWY5.5-5-23, BLED63-289-1.5, XWED3-85-187-YB-B3, XWD4-5-29, xled1.5-63-187,

BWY3-43-2.2, BLEY53-391-1.5, JXJ (L) 4-43-5.5, JXJE (L) 53-385-2.2
