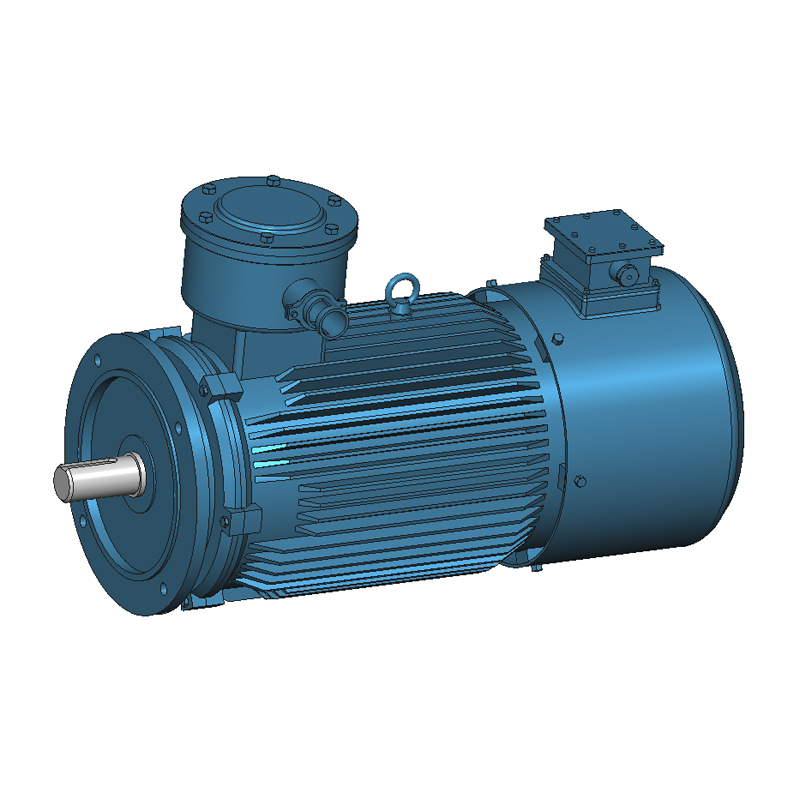

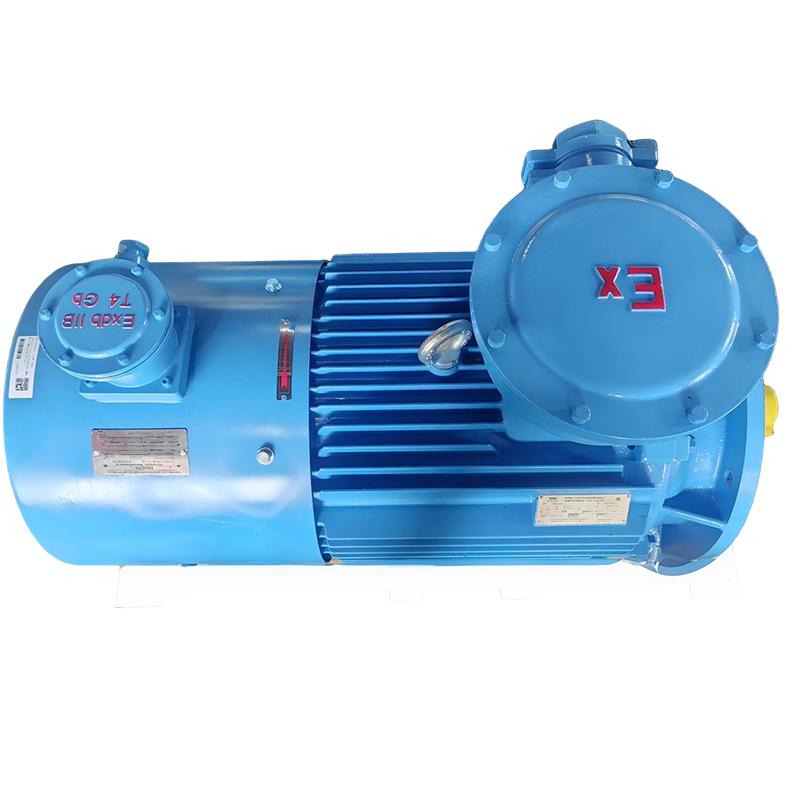

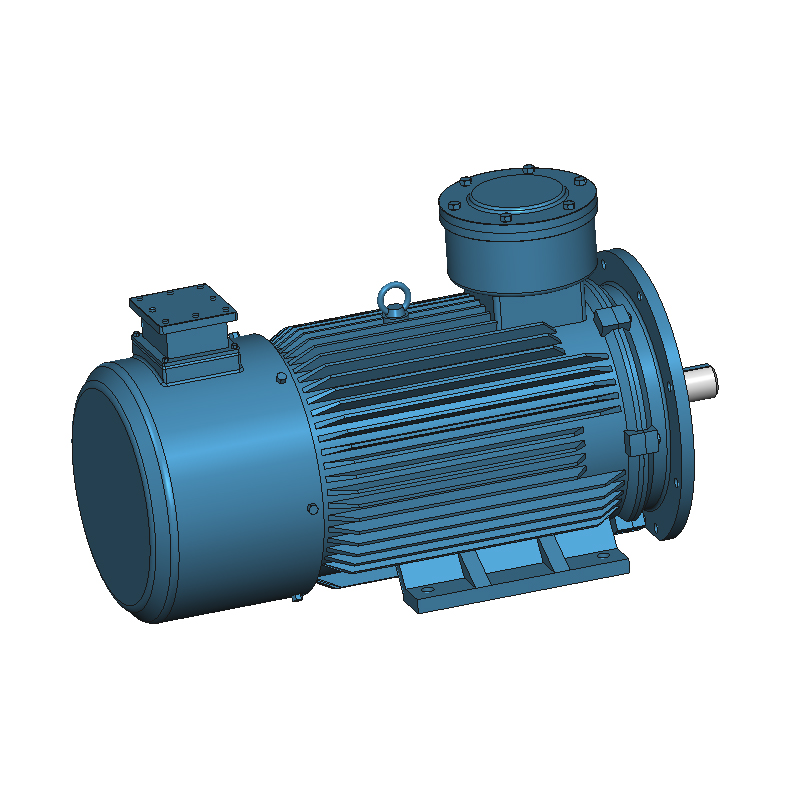

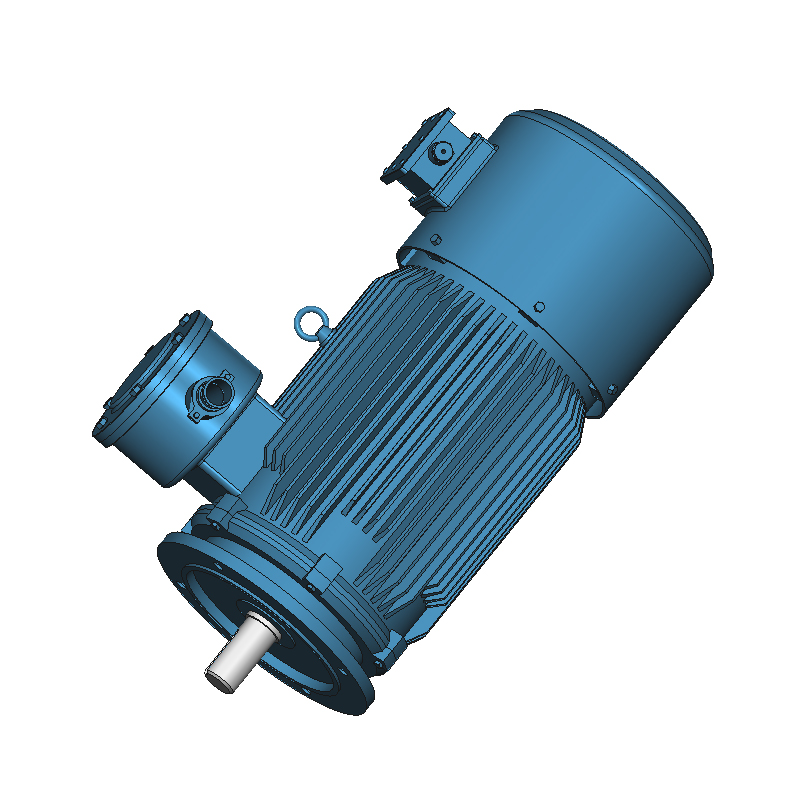

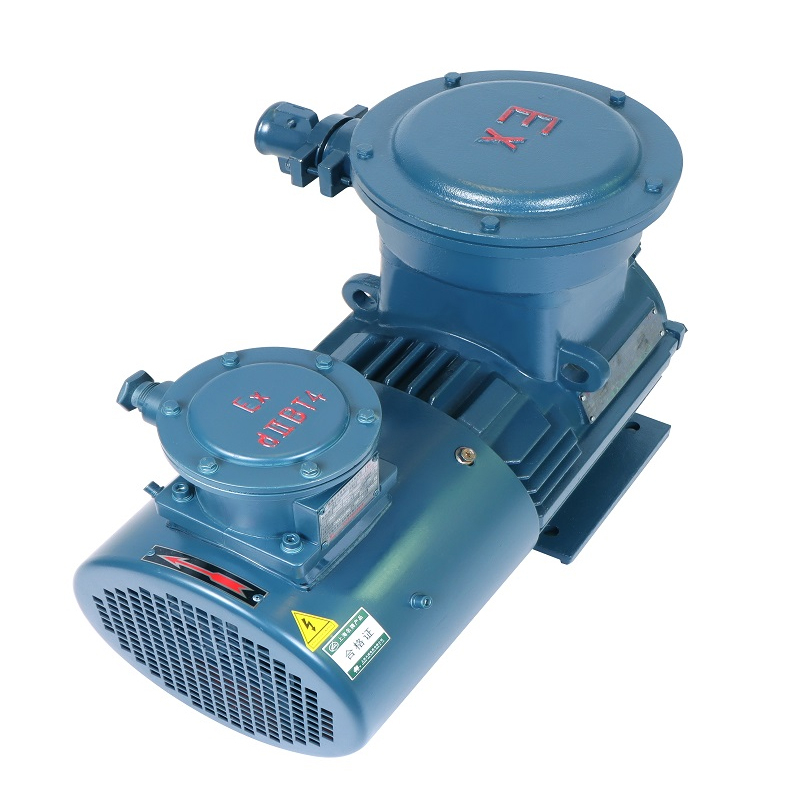

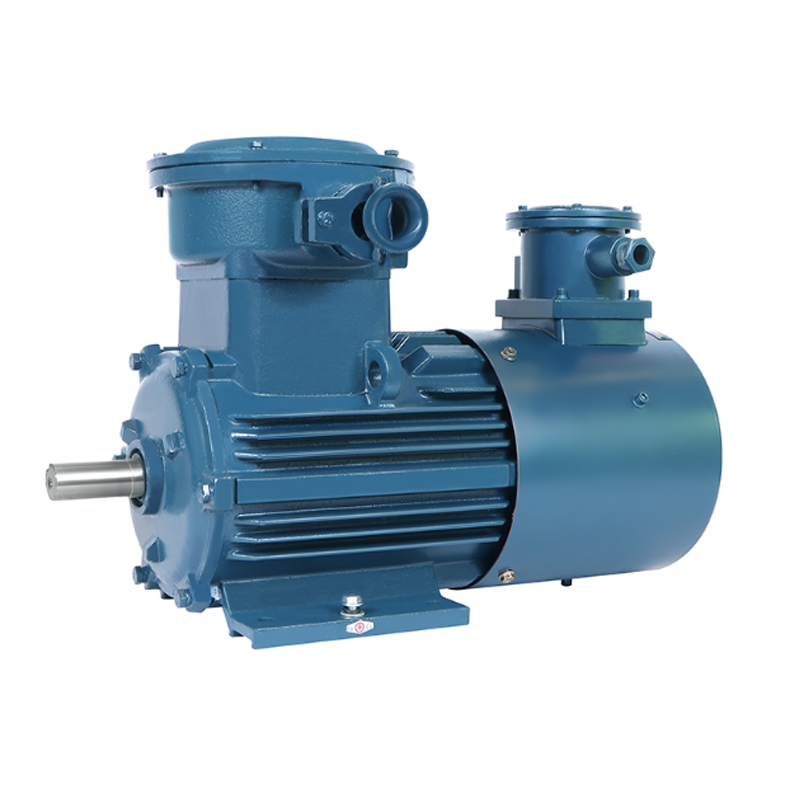

YBBP-355S2-4 (200kw 1500r/min)(Ex db IIB T4 Gb) explosion-proof frequency conversion speed regulation three-phase asynchronous motor

YBBP_Explosion-Proof_Motor_catalog.pdf        YBBP Explosion-proof Motor Manual_Chinese and English version.pdf

YBBP_RU_EAC_Russian certification certificate.pdf                    China_YBBP explosion-proof motor certificate_CCC mandatory certification.pdf.pdf

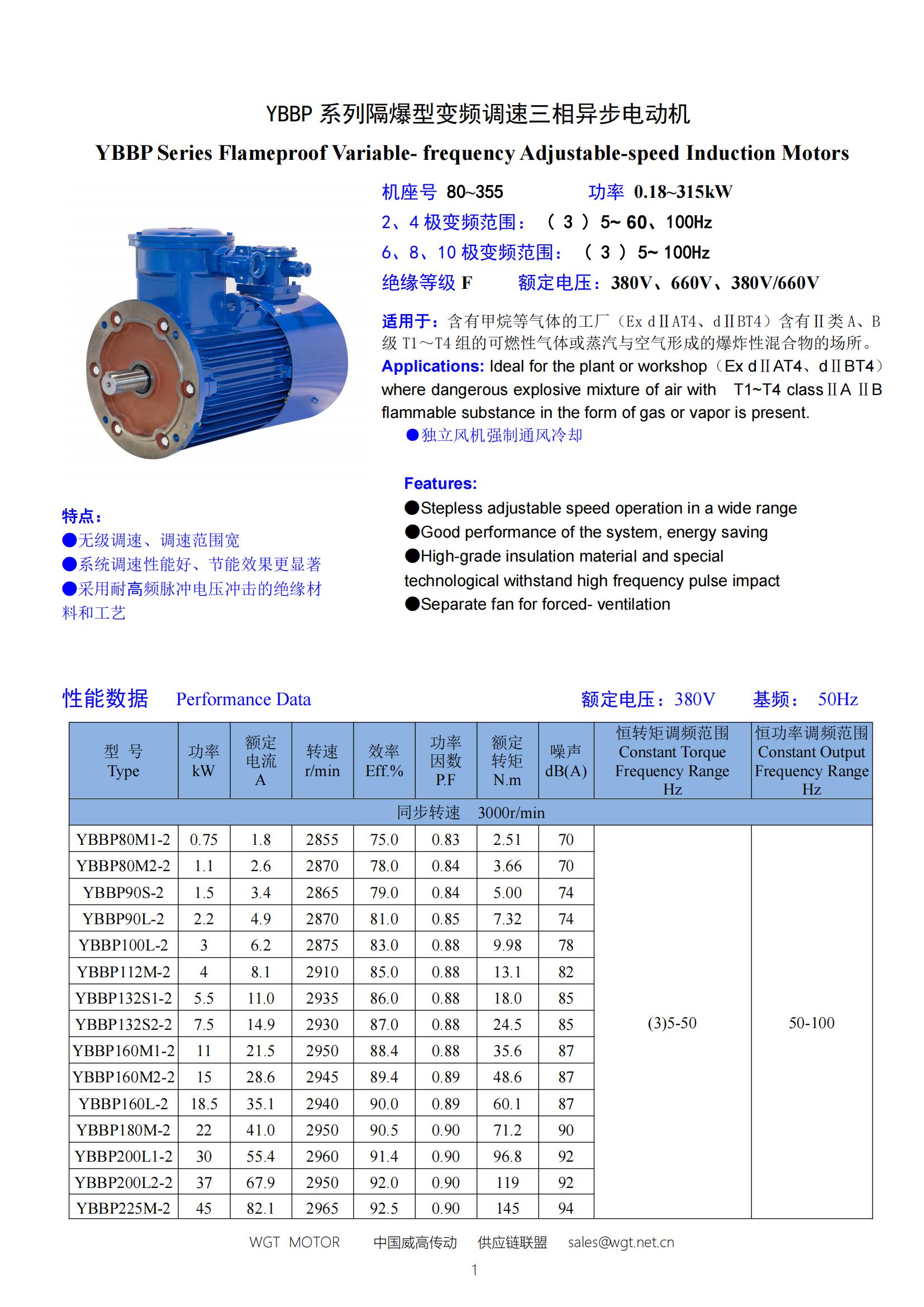

YBBP series explosion-proof frequency conversion speed regulation three-phase asynchronous motor

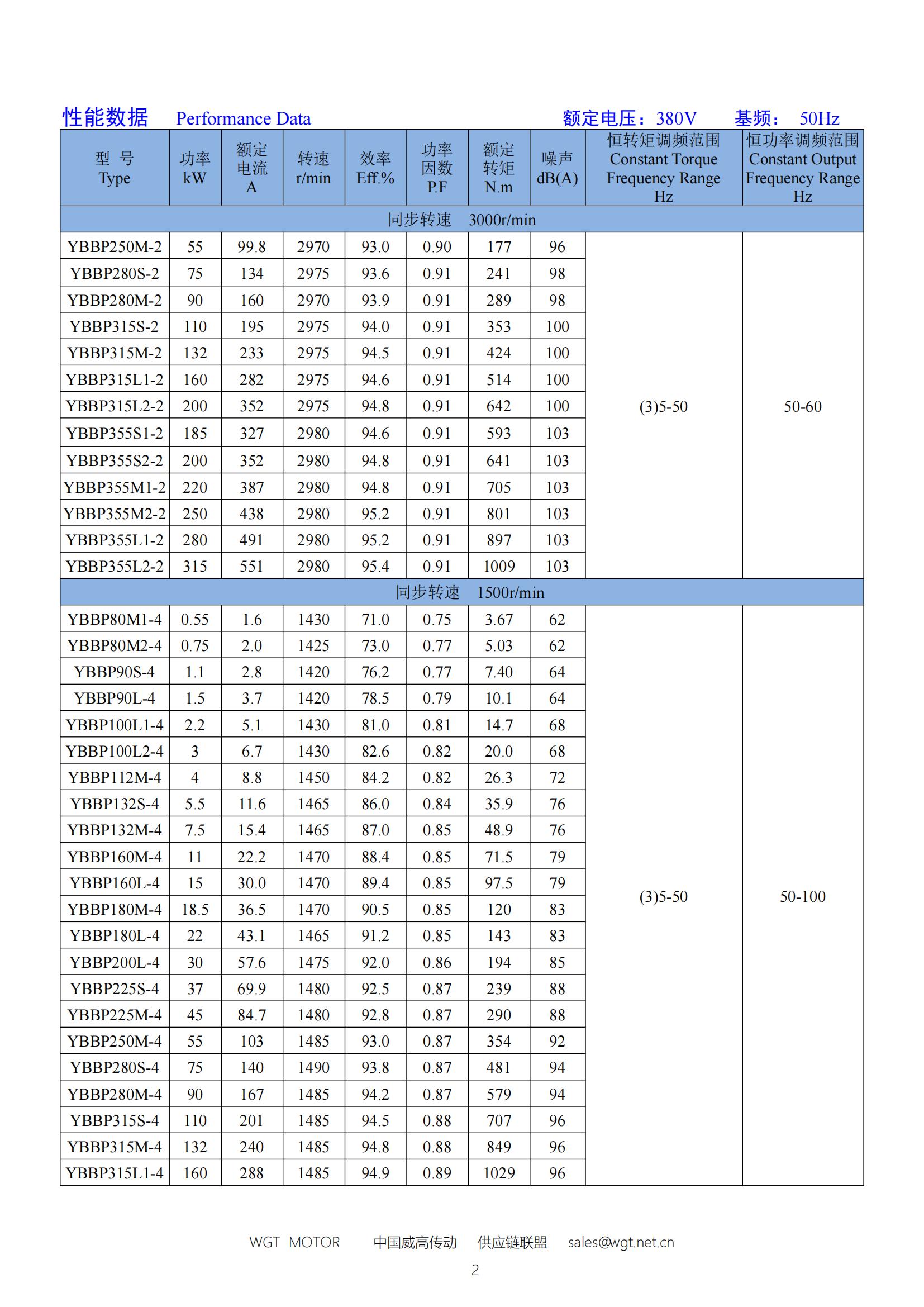

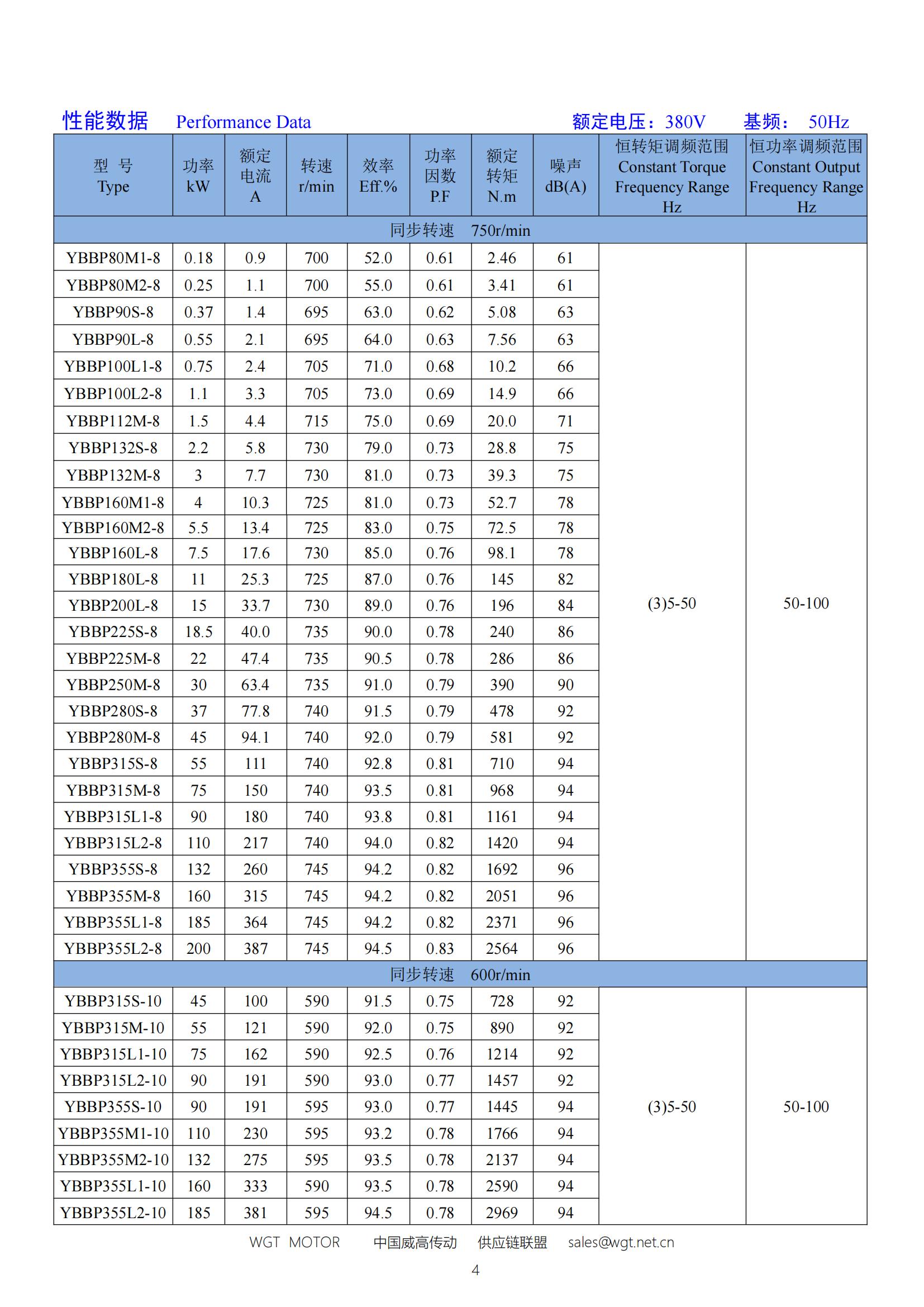

The machine base number is 80~355   , power is 0.18~315kW;    2.4-pole frequency conversion range: (3) 5~60, 100Hz 6, 8, 10 poles;   frequency conversion range: (3) 5~100Hz;  insulation level F;  Rated voltage: 380V, 660V, 380V/660V;  forced ventilation and cooling of independent fans

Suitable for: factories containing methane and other gases (ExdⅡAT4, dⅡBT4) where combustible gases of Class II A and B grades T1 to T4 groups or explosive mixtures formed by steam and air.

Features:

●Stepless speed regulation, wide speed regulation range

●The system has good speed regulation performance and more significant energy-saving effect ●Used insulating materials and processes that are resistant to high-frequency pulse voltage impact
