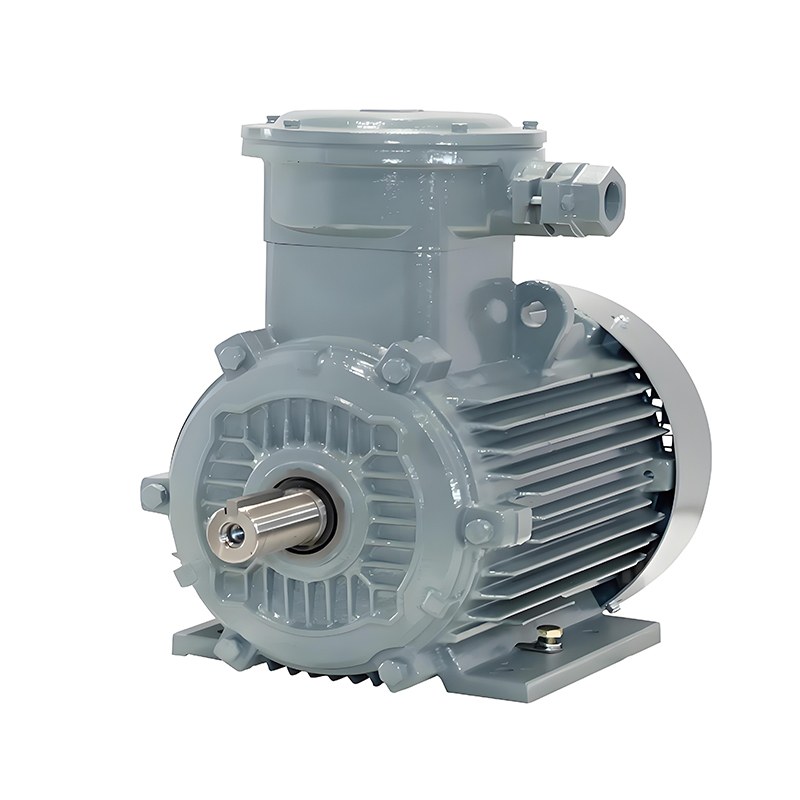

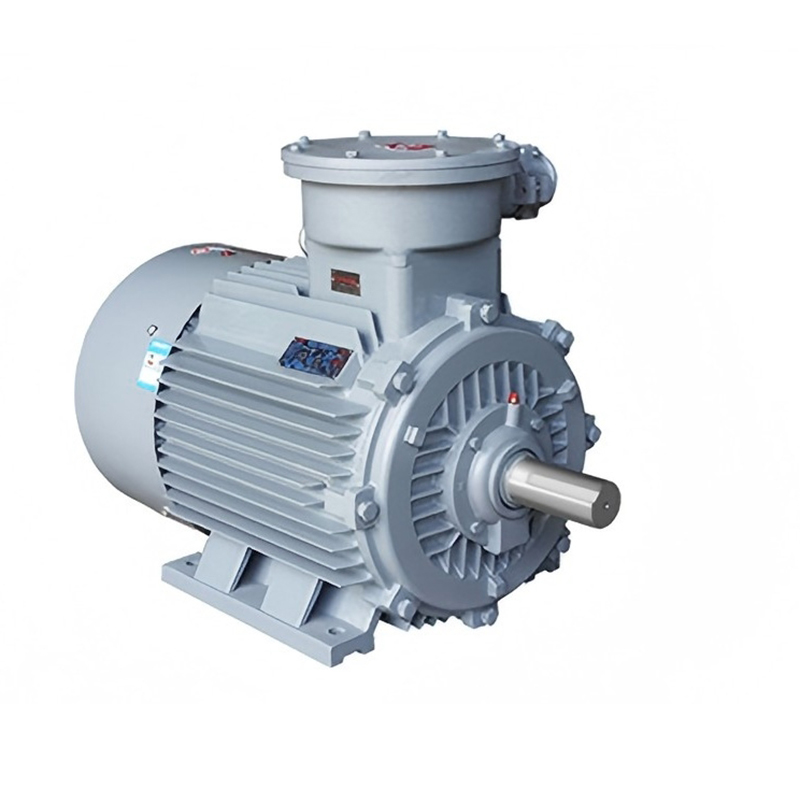

YBX3-315L1-10 (75kw 600r/min) (Ex dII CT4) High efficiency explosion-proof three-phase asynchronous motor

WNM_YBX3 product catalog_.pdf      WNM_YBX3_MOTOR.pdf      China_YBX3 explosion-proof certificate_CCC mandatory certification.pdf        Russian explosion-proof certificate YB3+YBX3.pdf        YBX3 explosion-proof motor instruction manual (Chinese and English).pdf

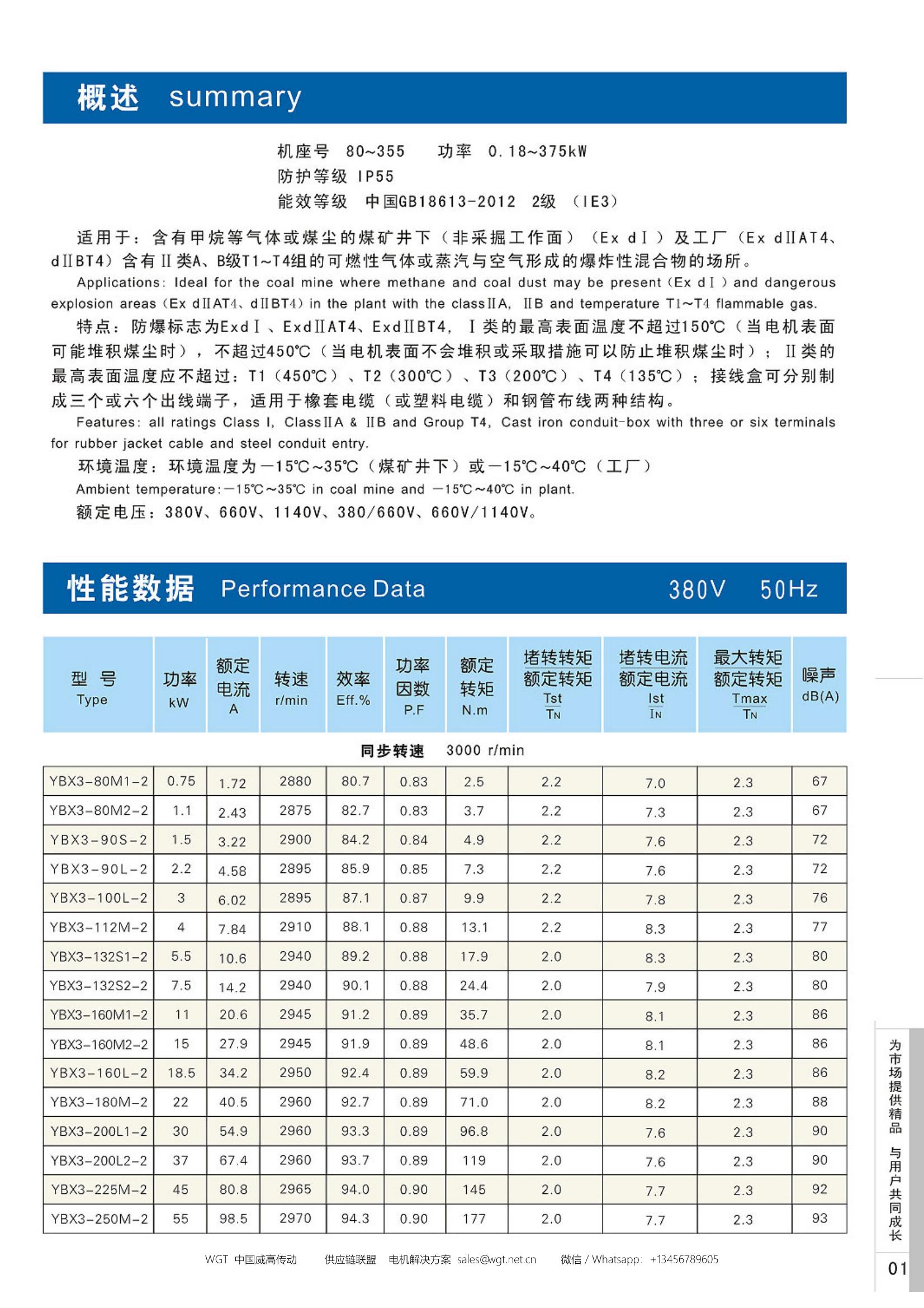

Cable number: 80~355         Power: 0.18~375kW          Protection level: IP55        Energy efficiency level: China GB18613-20122 class (IE3)

Suitable for: underground (non-mining working surface) (Ex d I ) and factories (Ex dlIAT4d Il BT4) containing combustible gases or explosive mixtures formed by steam and air of Class II Class AB T1~T4 groups

Features: The explosion-proof mark is Exd Ⅰ Exd IIAT4ExdIIBT4, the maximum surface temperature of Class I shall not exceed 150℃ (when the motor surface may accumulate coal dust), and shall not exceed 450℃ (when the motor surface does not accumulate or measures can be taken to prevent coal dust accumulation); the maximum surface temperature of Class I shall not exceed: T1 (450℃) T2 (300℃) T3 (200℃) T4 (135℃); the junction box can be made into three or six outlet terminals respectively, suitable for two structures: rubber sleeve cable (or plastic cable) and steel pipe wiring

Ambient temperature: Ambient temperature is -15℃~35℃ (under coal mine) or 15℃~40℃ (factory). Ambient temperature: -15℃~35'℃ in coal mine and -15℃~40℃ in plant.

Rated voltage: 380v66ov1140v380/66ov66oV/1140V
