China Weigao Transmission and Southern Anhui explosion-proof motors have joined forces to integrate the technical advantages of both parties to jointly create a fine industrial mixing matrix - explosion-proof mixing motors, industrial gearboxes, and explosion-proof variable frequency reducers. Among them, the Vigo Ex explosion-proof agitating reducer adopts multiple explosion-proof design, complies with the highest international explosion-proof standards, and is suitable for complex and dangerous working conditions such as chemicals, pharmaceuticals, and petroleum; the reducer is equipped with high-efficiency transmission technology to achieve high torque output, low energy consumption and low noise operation; industrial gearboxes can easily cope with the harsh working conditions of different industries with advanced forging technology and high-quality alloy materials. With the stable performance of the explosion-proof motor in southern Anhui, the two complement each other's advantages, providing safe, efficient and long-term power support for industrial mixing operations.
With its excellent product quality, China Vigo Drive's products have been successfully exported to many countries and regions around the world, establishing a high-quality image of 'Made in China' in the international market. In the future, both sides will continue to take technological innovation as the driving force and reliable quality as the foundation, and continue to deepen their efforts in the field of industrial transmission, injecting strong thrust into China's manufacturing into the mid-to-high-end global value chain, allowing more industrial mixing and high-quality services to the development of the world's industrial.
Examples [Explosion-proof mixing motor/industrial gearbox/explosion-proof frequency converter]
-Product model: WGT-MC3PVSF07FFB-1/40-NA35-23+YBBP250M-4B35-55KW4P+B35+ EXP-A;sf 2.4

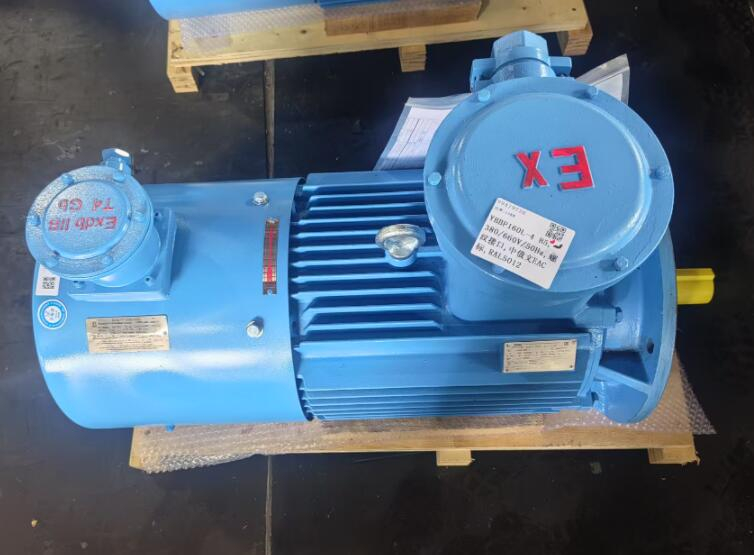

- Explosion-proof motor: YBBP-55KW4P
-Gearbox model: MC3PVSF07
-Axis position (layout form): 23

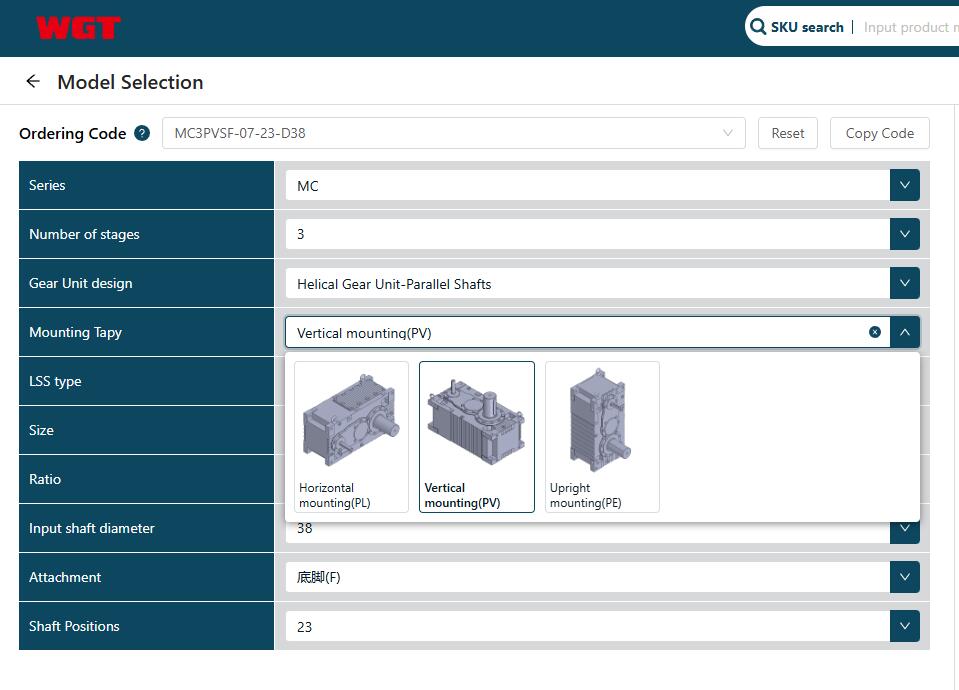

-Installation method: vertical installation
-Motor connection method: IEC standard connection, B5
-Luction method: centralized fuel tank lubrication

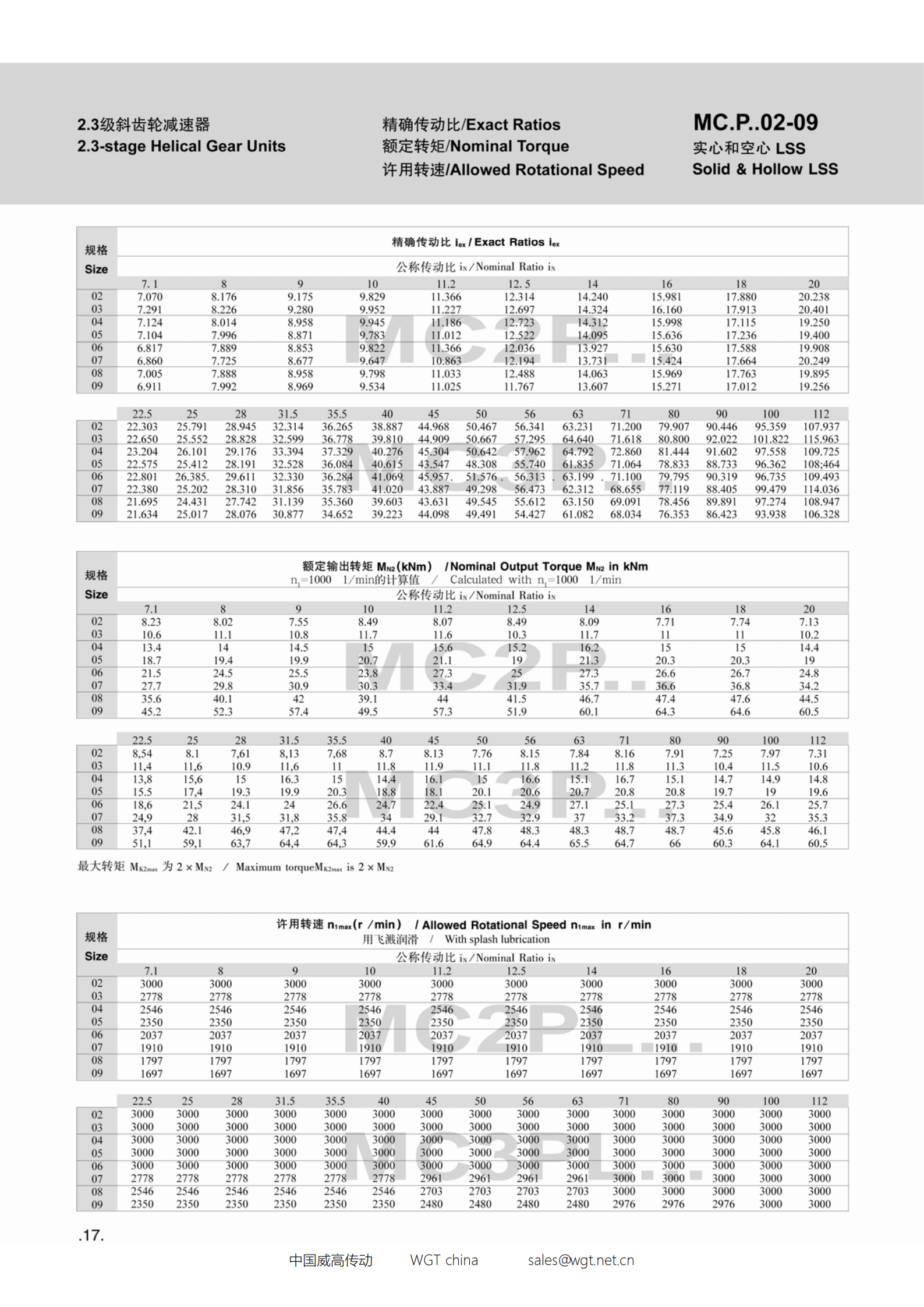

-Nominal speed ratio: 40
- Accurate speed ratio: 41.020
-Rated mechanical power: 134KW4P
-Input motor speed: 1500r/min
-Actual motor power: 55kw4P
-Safety factor: 2.4
-Usage efficiency: 96%
-Rated torque: 34KN.m
-Input speed: 1500 rpm
-Output speed: 35 rpm
-Input shaft diameter d1: 50k6 mm
-Output shaft diameter d2: 140m6 mm
-Input shaft length Y1: 140 mm
-Output shaft length Y2: 250 mm
-Input axis key b1: 14h9 mm
-Output shaft key b2: 36h9 mm
-Weight kg: 797kg
- Oil volume: 130L
-Output shaft connection stirring rod method: rigid half coupling connection
31_MC series replaces SEW Chinese and English.pdf YBBP explosion-proof variable frequency motor sample.pdf 16.YBBP instruction manual (Chinese and English).pdf YBBP explosion-proof variable frequency motor sample.pdf YBBP Russian EAC certificate.pdf China_YBBP explosion-proof certificate_CCC mandatory certification.pdf.pdf EAC certificate for export to Russia and other countries--explosion-proof motor and dust explosion-proof motor (421700 Макет ДС ТР ТС).pdf

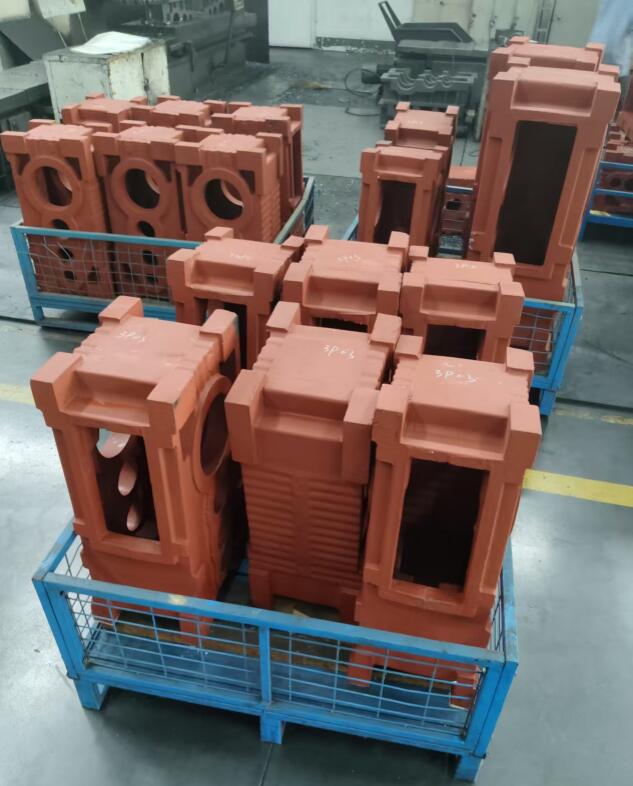

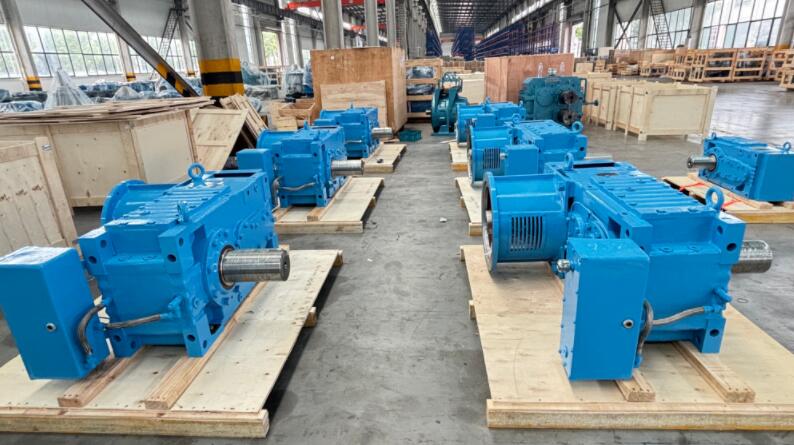

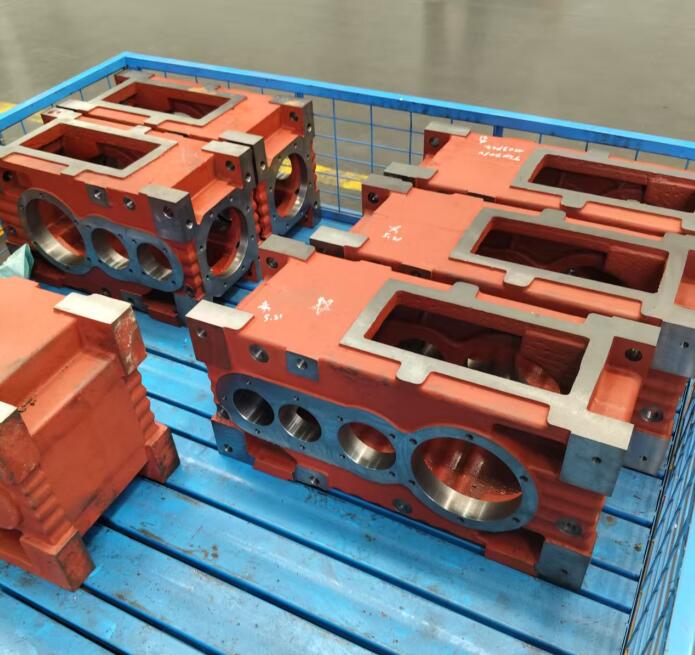

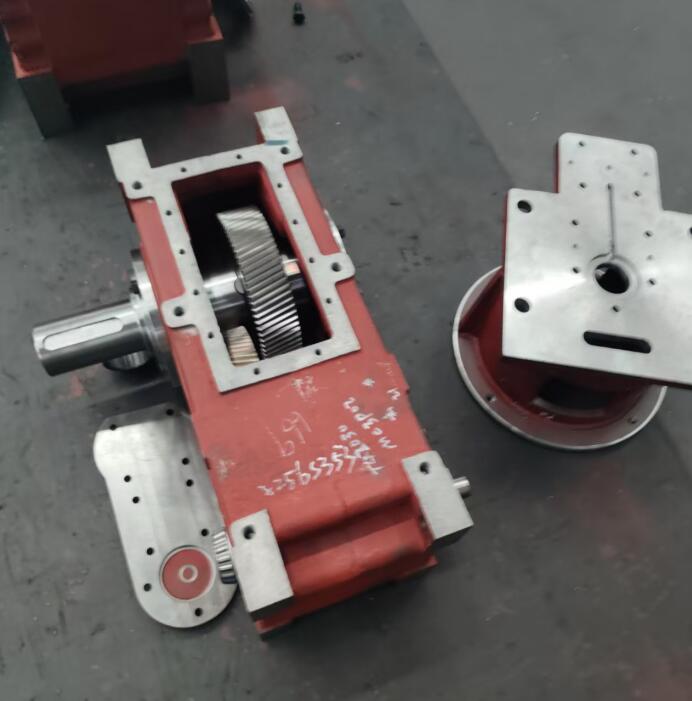

Photos of industrial gearbox production process

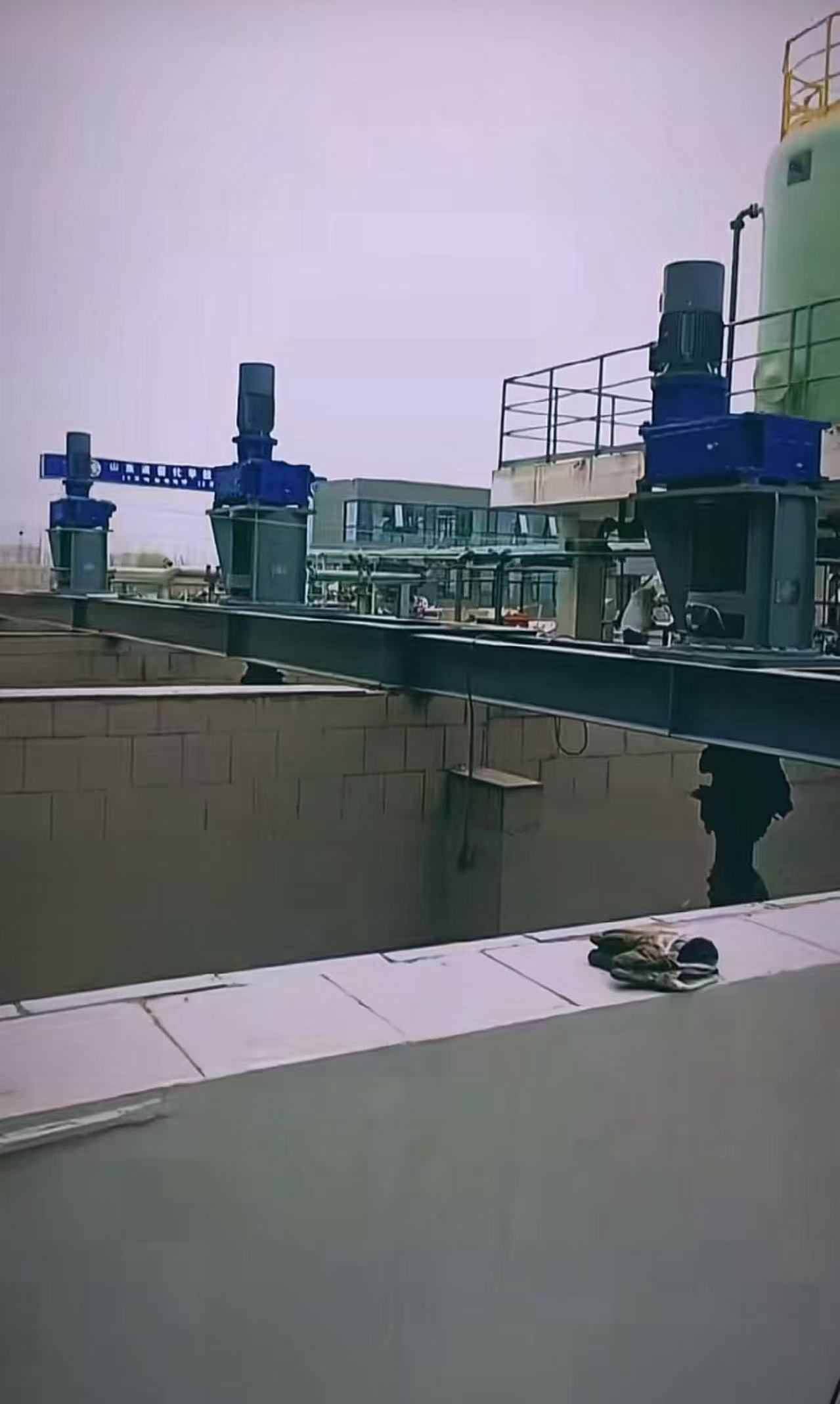

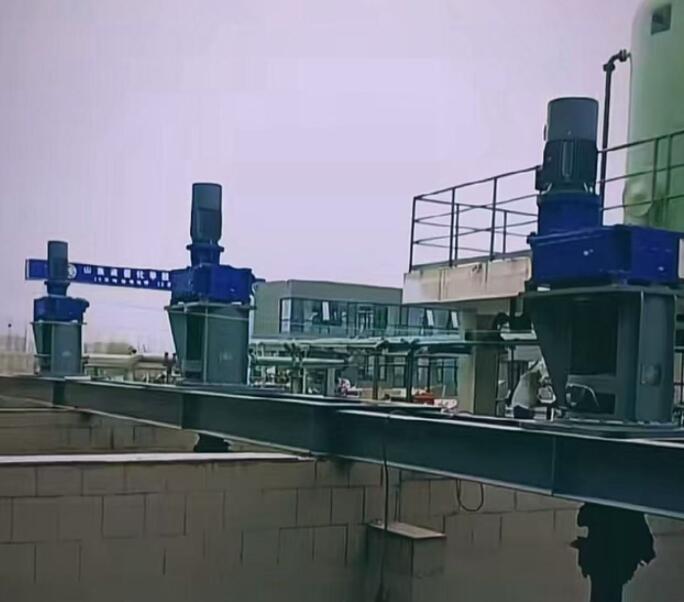

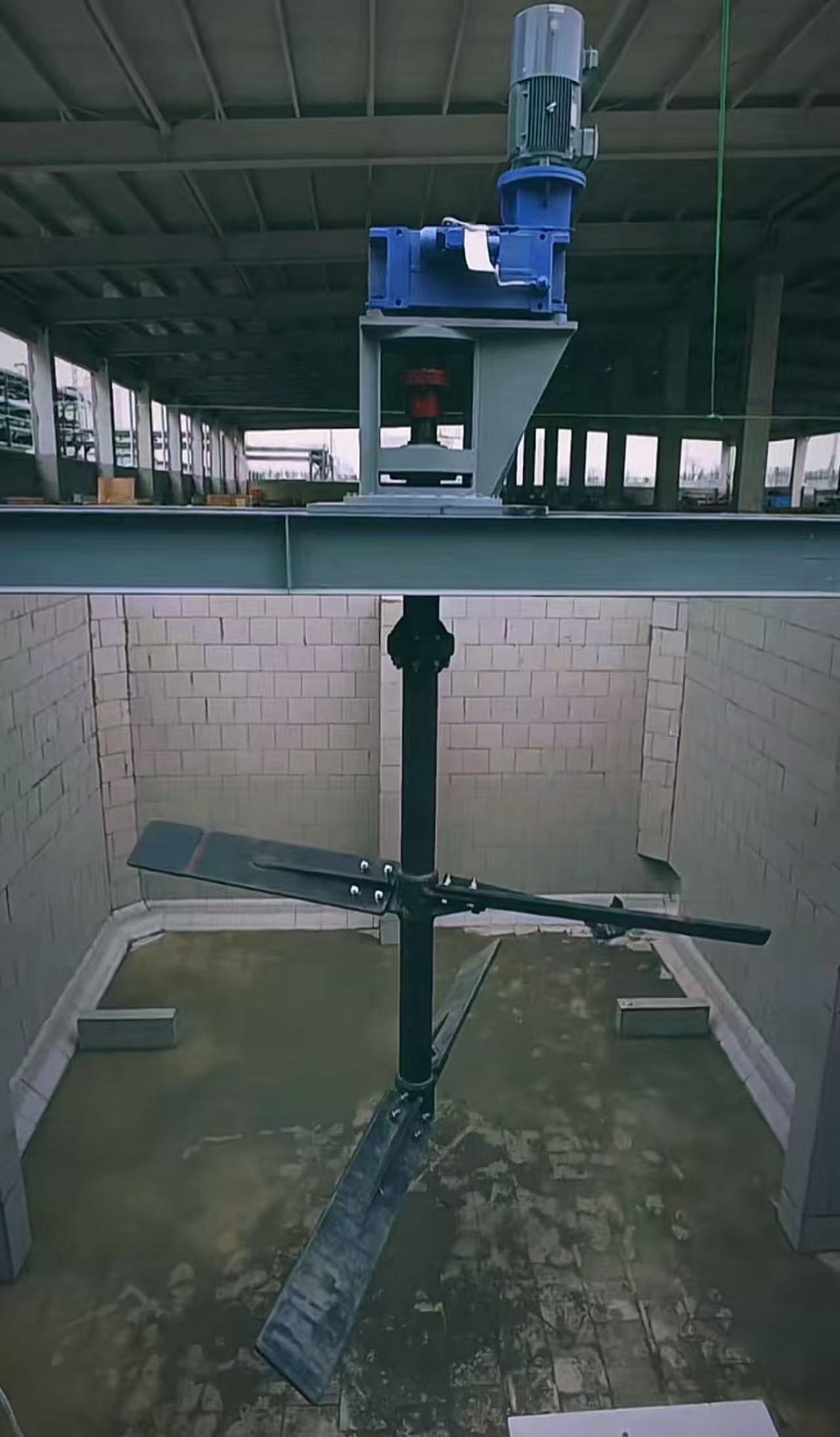

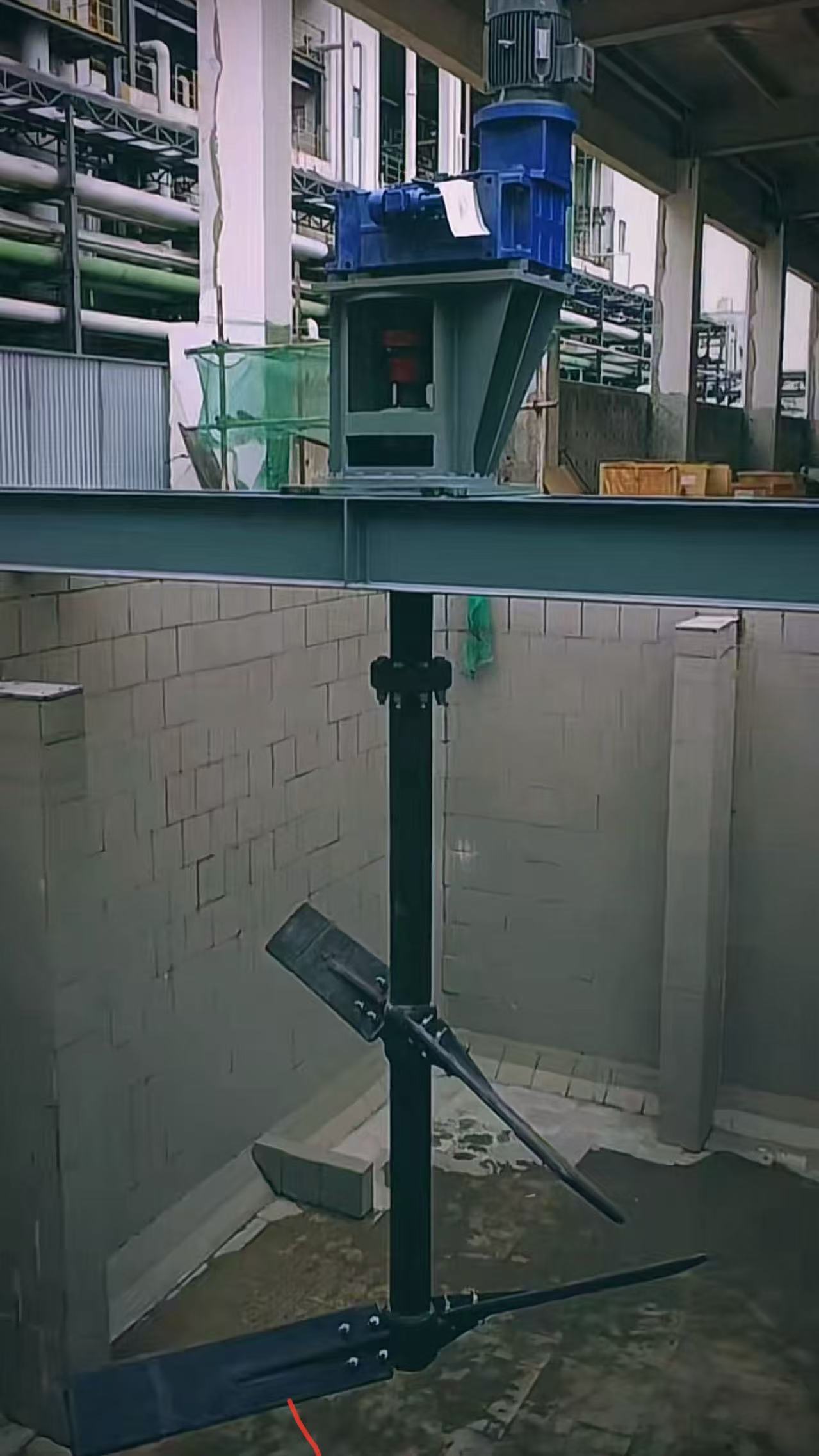

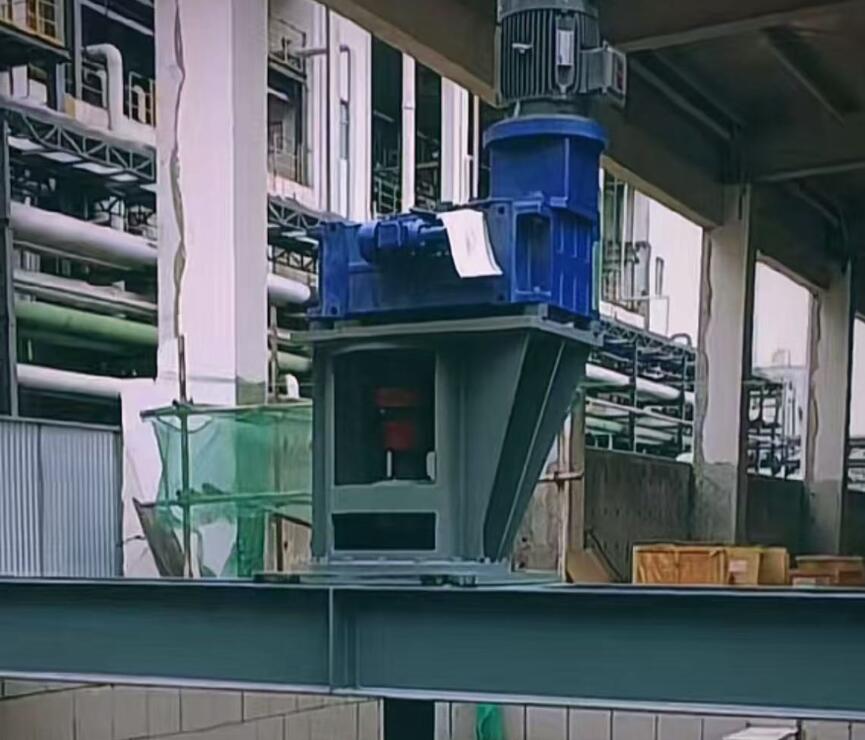

Product application scenario display of explosion-proof mixing reducer

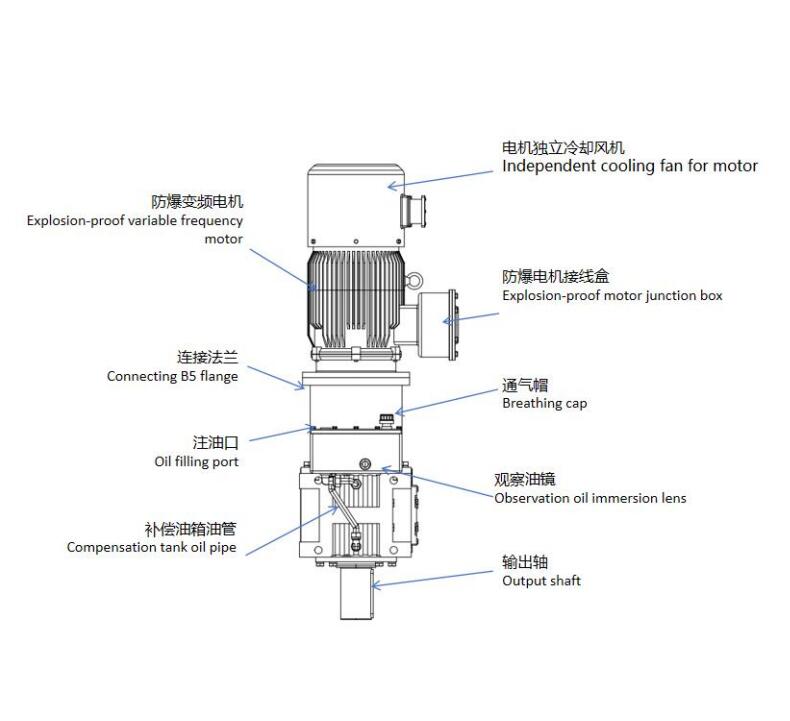

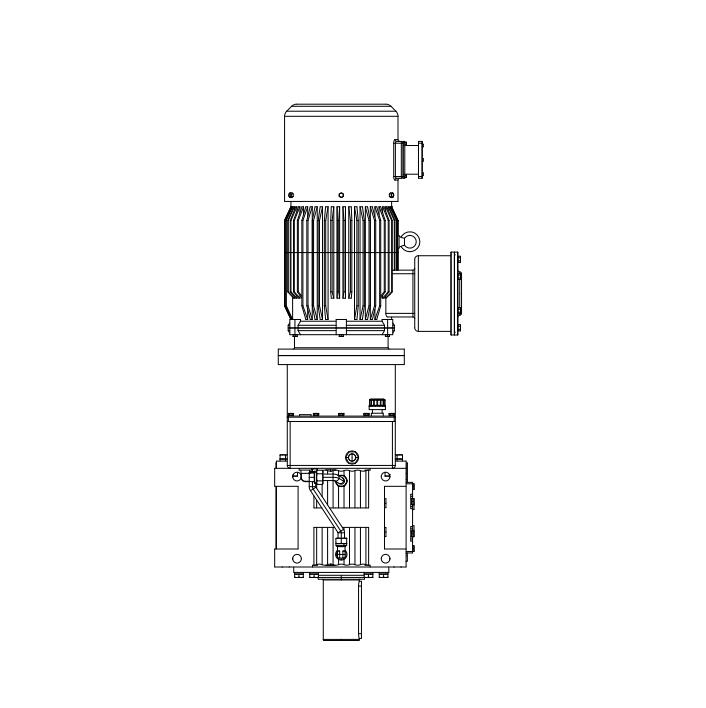

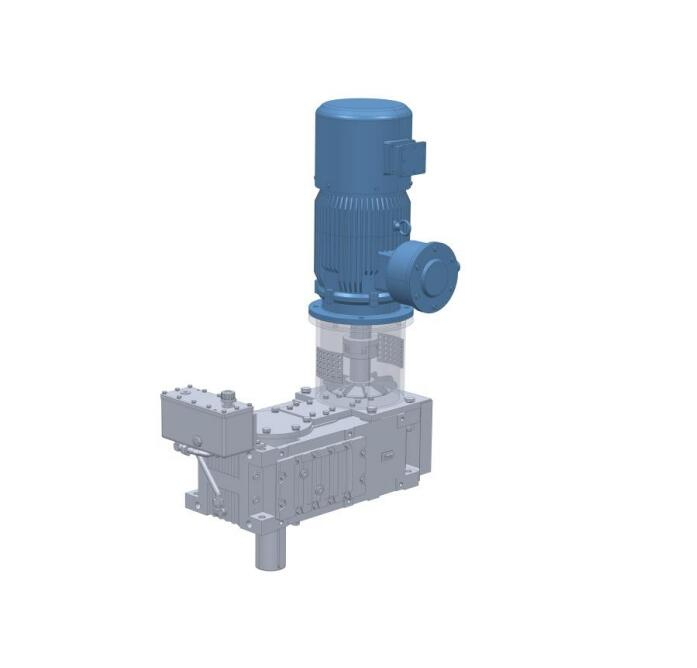

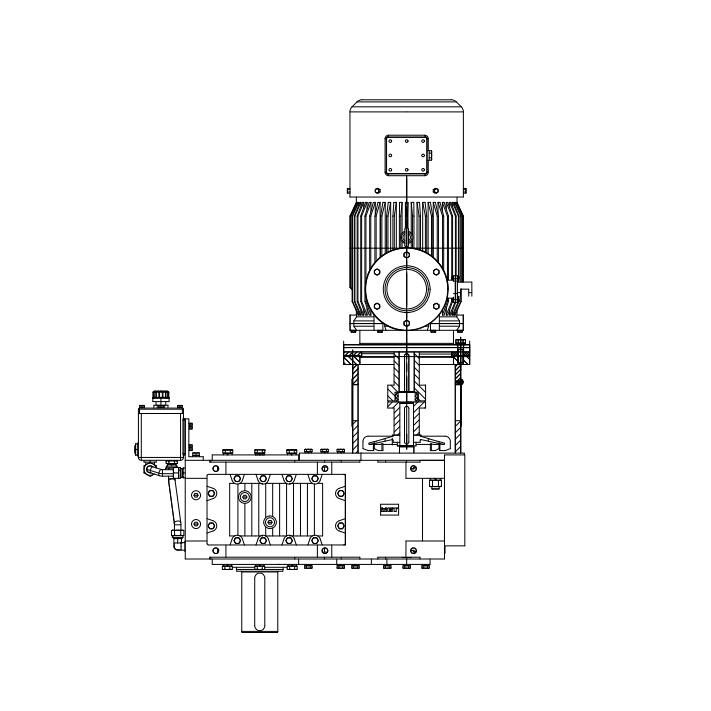

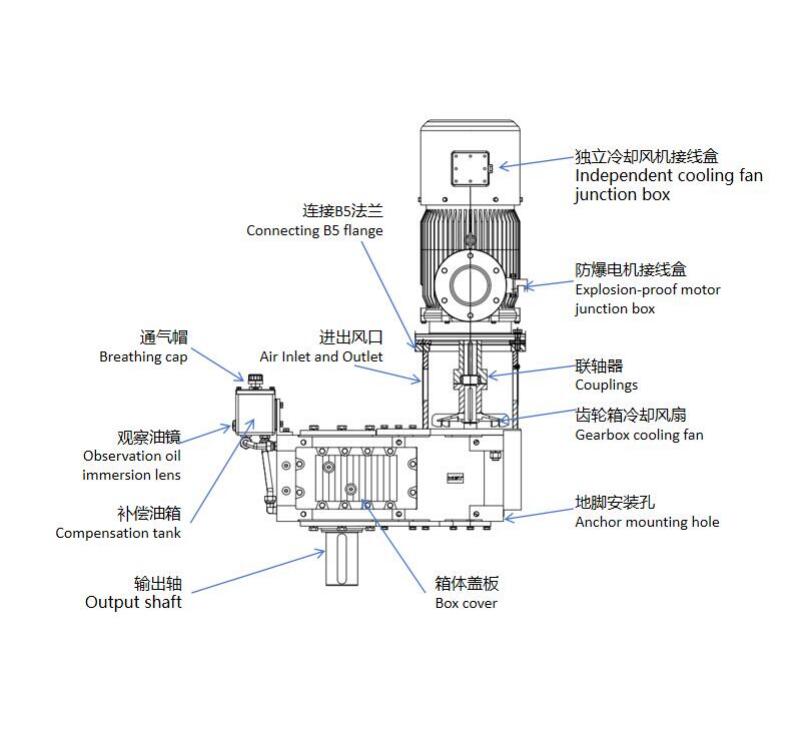

Explosion-proof stirring reducer motor

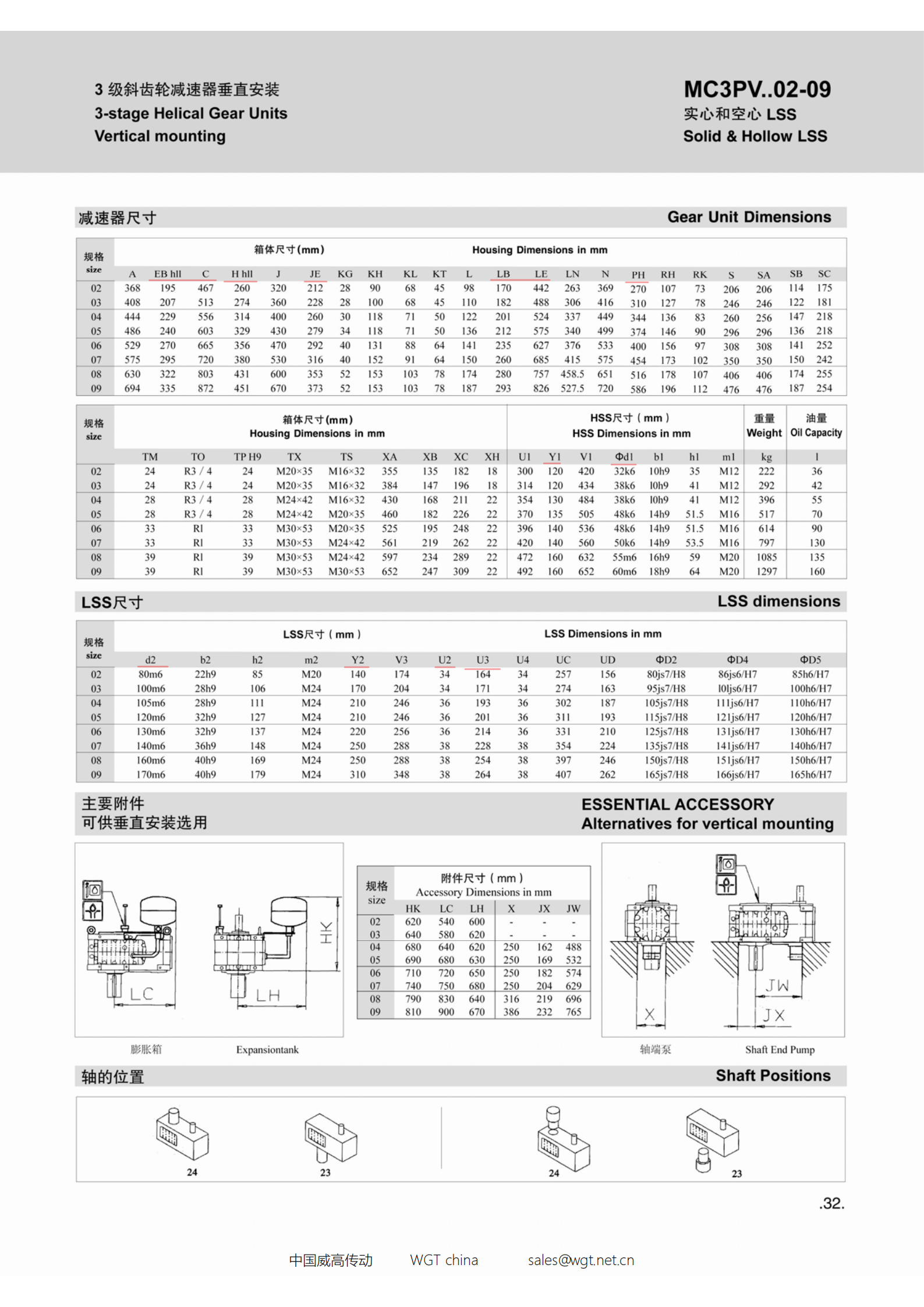

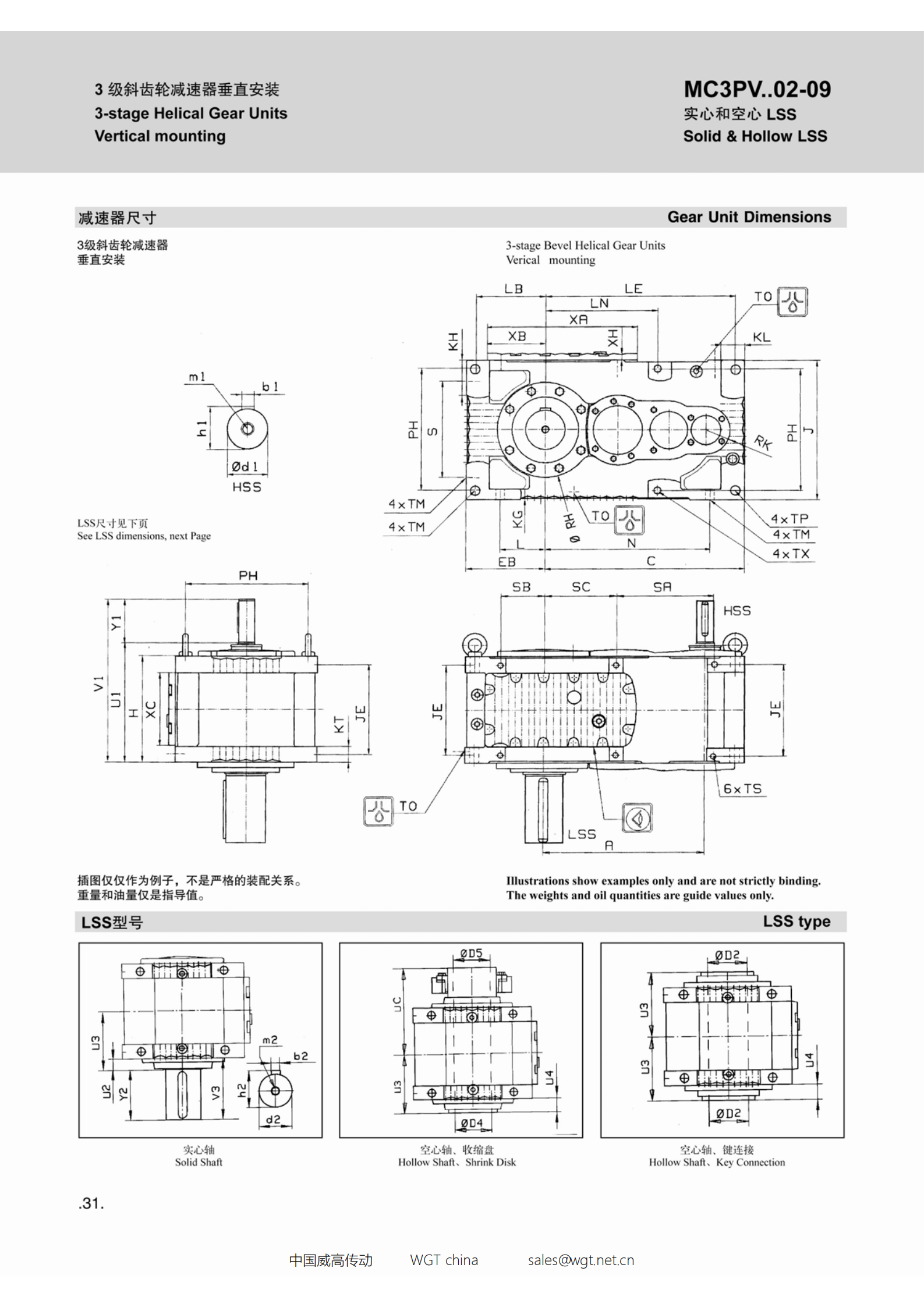

Industrial gearbox vertical installation model series
WGT-MC3PVSF02FFB
WGT-MC3PVSF03FFB
WGT-MC3PVSF04FFB
WGT-MC3PVSF05FFB
WGT-MC3PVSF06FFB
WGT-MC3PVSF07FFB
WGT-MC3PVSF08FFB
WGT-MC3PVSF09FFB
