In industrial production, reducers, as core accessories of transmission equipment, are widely used in various production lines such as conveying, mixing, lifting, and processing. Many maintenance technicians and equipment managers will encounter the same thorny problem: the newly replaced reducer has not been used for long, and oil leaks frequently from the gaps in the housing and the shaft end seal. Even if the oil seal is replaced repeatedly and sealant is added, the problem still recurs.
Most people will immediately blame the poor quality of oil seals and lubricants. In fact, the root cause of most oil leakage failures is not the quality of the accessories, but the mismatch between the installation method and the model. Vertical and horizontal reducers have completely different structures, lubrication systems, and ventilation hole position designs. Once the installation orientation is wrong, the internal oil pressure balance will be directly broken, and oil leakage problems will continue to occur frequently. I will give you a detailed breakdown of the differences between the two, applicable scenarios and Selection installation core logic to eliminate oil leakage from the root cause.
1. Straightforward distinction: basic definition of vertical & horizontal reducer
To put it simply, the most intuitive difference between the two is the installation and placement form. At the same time, the internal oil circuit structure is specifically adapted to the exclusive installation method:

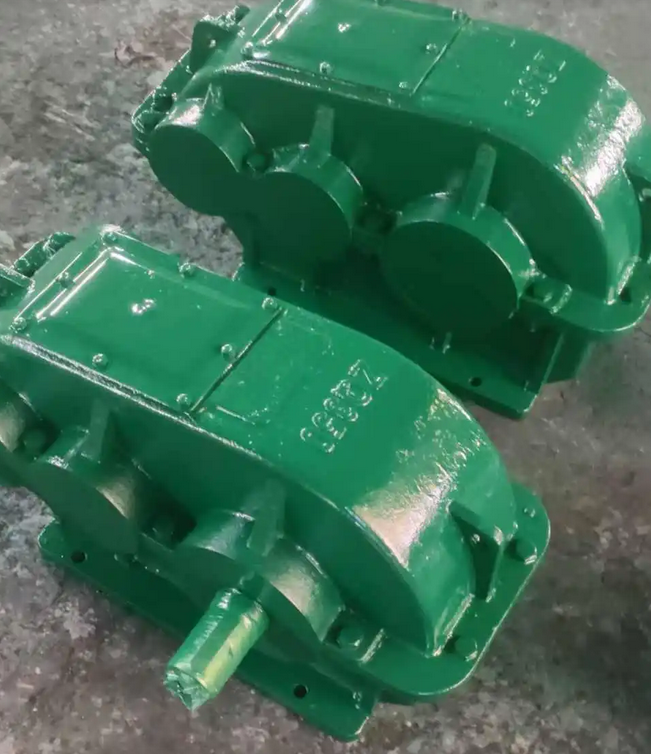

1. Horizontal reducer: A common horizontal installation model in the industry. The equipment is placed flat as a whole, with the input shaft and output shaft in a horizontal state, and the base is fixed by the bottom anchor bolts. The oil tank adopts a side-mounted design, and the oil is laid flat in the lower part of the casing. It relies on gear rotation and splashing to complete full-area lubrication. It is also the most commonly used standard model on the market.
2. Vertical reducer: Vertically installed model, the output shaft faces vertically upward or downward, usually with flange fixation, and the input shaft and output shaft axes intersect vertically. Affected by gravity, oil will deposit downwards, and the upper bearings and gears are prone to insufficient lubrication. Therefore, the oil circuit, ventilation holes, and sealing structures have been specially optimized and cannot be used directly flat.
2. If you choose the wrong installation method, why will oil leakage occur?
Many novices have misunderstandings: the reducer can be installed upside down, in any direction, as long as it can be used. As everyone knows, when the manufacturer leaves the factory, the ventilation holes, oil level scale, and sealing components have been customized according to the installation method. Installation errors will cause cascading failures:
1. The ventilation hole fails and the internal pressure skyrockets: The function of the ventilation hole is to balance the internal thermal expansion pressure when the reducer is running. The ventilation hole of the horizontal model is located at the top of the casing; the ventilation hole of the vertical model will be shifted to the upper side. If installed horizontally, vertically or flatly, the ventilation holes will be directly flooded with lubricating oil, and the internal high pressure cannot be discharged. The oil will be squeezed outward along the gaps between the oil seal and the shell, causing continuous oil leakage.
2. Oil level imbalance and local oil overload: After the horizontal reducer is tilted/installed vertically, the originally flat lubricating oil will accumulate toward one end, and the local oil level far exceeds the upper limit of the seal. After the vertical reducer is installed flatly, the excess oil at the bottom cannot circulate through the original oil circuit and directly soaks the shaft end oil seal, accelerating the aging and deformation of the oil seal.
3. The seal is damaged by one-way force: The vertical model shaft seal adopts a double-layer pressure-resistant sealing structure to adapt to vertical axial loads; the horizontal shaft seal focuses on horizontal radial protection, and forced mixed installation methods will cause uneven stress on the seal and permanent deformation. No matter how the oil seal is replaced later, oil leakage cannot be cured.
3. Core Selection principles, novices can copy them directly
(1) Scenarios where horizontal reducers are preferred
It is suitable for working conditions with sufficient space width, horizontal equipment operation and no vertical axial pressure. It is also the first choice for general working conditions: workshop conveying lines, drum transmission equipment, fans and water pumps, horizontal transmission machine tools, small crushers, etc.
Installation tips: Horizontal installation must use a level to calibrate the fuselage, and the horizontal error is controlled within 0.1mm/m. A slight tilt of the fuselage will cause the oil level on one side to be high, posing a potential risk of oil leakage.
