1. The K series reducer has a high technological content, and has a combination of helical gear and worm gear, which improves the torque and efficiency of the machine.This series of products has complete specifications, wide speed range, good versatility, suitable for various installation methods, safe performance, reliable and long life, and implements the requirements of international standards. 2. Space-saving, reliable and durable, with high overload capacity, the power can reach more than 200KW. 3. Low energy consumption, superior performance, and the efficiency of the geared motor is as high as 95%. 4. The concave and convex surface of the body has a heat dissipation effect, strong vibration absorption, low temperature rise, and low noise.Good sealing performance, strong adaptability to working environment. 5. K series helical gear worm gear reducer has high transmission precision, and is especially suitable for working in occasions with frequent startups. It can be connected to various reducers and configured with various types of motor drives, and can be installed at a 90-degree transmission operating position. 6. The key components of the K helical gear reducer are made of high wear-resistant materials and have undergone special heat treatment. They have the characteristics of high processing precision, stable transmission, small size, large carrying capacity, and long service life.

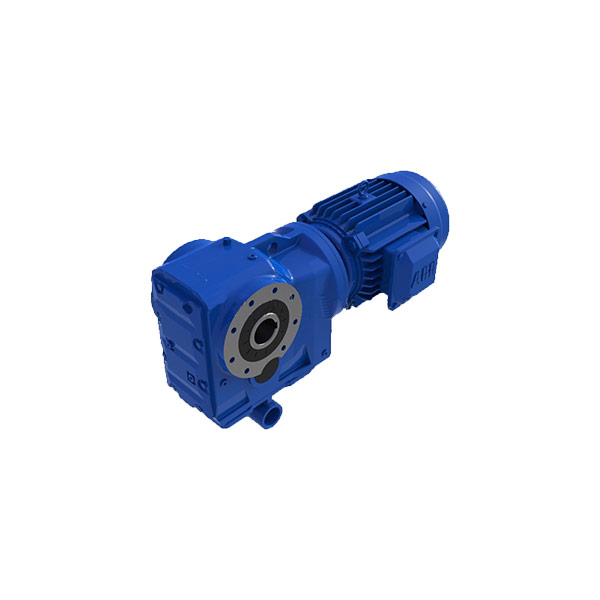

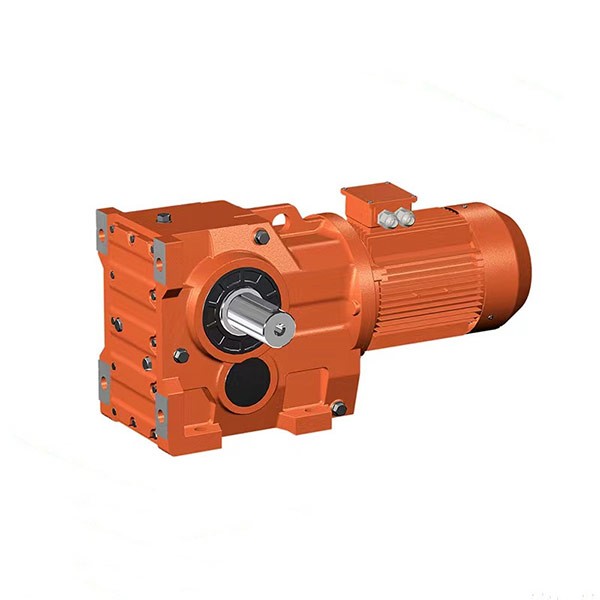

K series gear reducer
Model: K37~K187 (consult for details) Power: 0.18kw~75kw Specifications: 380v (three-phase), anti-exposure motor, anti-static, frequency conversion, etc. Speed regulation mode: speed regulation, non-speed regulation motor Speed mode: fixed, the speed is selected according to the customer's mixing purpose Color: optional according to customer needs Weight: According to selected or customized models Packing: wooden box
structure
Hyperboloid + K series
Model and parameters
Model representation method
Note:
1. Please specify if connecting flange is required. 2. The input shaft type does not have all the contents of the motor. 3. If the direction of the junction box is not specified, it defaults to the 0 degree position in the installation form.When the entry position is not specified, it defaults to the X position. 4. If there are special requirements for the rotation direction of the output shaft and the rotation direction of the input shaft, please contact the customer service personnel for clarification.
