Introduction to dosing mixer
The dosing mixer is mainly composed of a motor, a reduction device, a stirring shaft and paddles.
There are various forms of stirring blades, but no matter what type of blades are in use, when the mixer is in operation, its shaft power consumption will produce two parts, one is the displacement generated by the blades, and the other is the pressure generated by the blades. head.The pressure head generated by the paddle can be divided into two parts, namely the static pressure head and the shear force.When the mixer blade is in operation, it must overcome the static pressure head, and the shear force makes the material disperse and mix.Therefore, according to the displacement produced by the blade, the ability to overcome the static pressure head and generate shear force, all blades can be divided into three basic types, namely flow type, pressure head type and shear type.While each type of blade provides a certain basic function (such as the basic function of a flow type blade is to generate liquid displacement), it also provides two other functions (generating shear and overcoming static pressure head).
Product Series

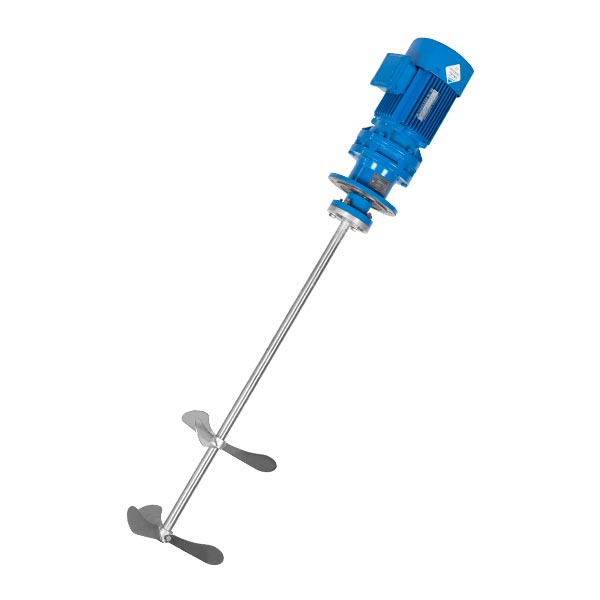

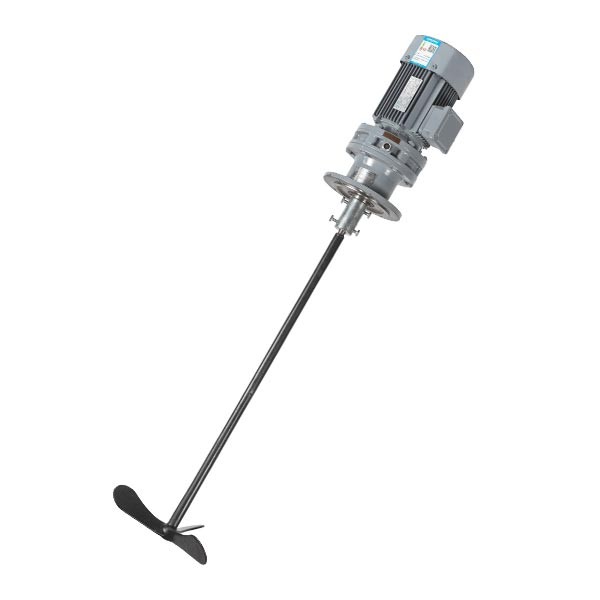

Cycloid mixer series
Power: 0.37kw, 0.55kw, 0.75kw, 1.1kw, 1.5kw, 2.2kw, 3kw, 4kw, 5.5kw, 7.5kw, 11kw, 15kw... (consult for details)
Specifications: 380v (three-phase), 220v (single-phase), anti-exposure motor, anti-static, etc.
Stirrer material: 304 stainless steel, 304 stainless steel lined with rubber, PO (lined with plastic), PP, PTFE, etc.
Stirrer and supporting form, size, specification, material: according to customer demand, stirring environment and motor power
Speed regulation mode: non-adjustable speed motor
Speed mode: fixed, the speed is selected according to the customer's mixing purpose
Color: optional according to customer needs
Weight: According to selected or customized models
Packing: wooden box
F series gear mixer
Model: F37~F157 (consult for details)
Power: 0.18kw~75kw
Specifications: 380v (three-phase), anti-exposure motor, anti-static, frequency conversion, etc.
Speed regulation mode: speed regulation, non-speed regulation motor
Speed mode: fixed, the speed is selected according to the customer's mixing purpose
Color: optional according to customer needs
Weight: According to selected or customized models
Packing: wooden box
K series gear mixer
Model: K37~K187 (consult for details)
Power: 0.18kw~75kw
Specifications: 380v (three-phase), anti-exposure motor, anti-static, frequency conversion, etc.
Speed regulation mode: speed regulation, non-speed regulation motor
Speed mode: fixed, the speed is selected according to the customer's mixing purpose
Color: optional according to customer needs
Weight: According to selected or customized models
Packing: wooden box
R series gear mixer
Model: R17~R177 (consult for details)
Power: 0.18kw~75kw
Specifications: 380v (three-phase), anti-exposure motor, anti-static, frequency conversion, etc.
Speed regulation mode: speed regulation, non-speed regulation motor
Speed mode: fixed, the speed is selected according to the customer's mixing purpose
Color: optional according to customer needs
Weight: According to selected or customized models
Packing: wooden box
S series gear mixer
Model: S37~S100 (consult for details)
Power: 0.18kw~75kw
Specifications: 380v (three-phase), anti-exposure motor, anti-static, frequency conversion, etc.
Speed regulation mode: speed regulation, non-speed regulation motor
Speed mode: fixed, the speed is selected according to the customer's mixing purpose
Color: optional according to customer needs
Weight: According to selected or customized models
Packing: wooden box
Little King Kong Blender
Model: MYJG200-10 (consult for details)
Specifications: 380v (three-phase), 220v (single-phase), anti-exposure motor, anti-static, frequency conversion, etc.
Speed regulation mode: speed regulation, non-speed regulation motor
Speed mode: fixed, the speed is selected according to the customer's mixing purpose
Color: optional according to customer needs
Weight: According to selected or customized models
Packing: wooden box
Production advantages of mixer products
1. Large product coverage and wide application range
The products are diverse, satisfying the mixing scenes of solid & solid, liquid & liquid, solid & liquid, gas & liquid and other combinations.According to the various environments of customer applications, top, side and bottom installation methods are provided.According to the flow direction, there are hundreds of mature craft products such as propulsion type, turbine type, frame type, anchor type, spiral belt type, screw type, spiral belt + screw type, etc.The equipment process can reach agitator length of more than 12 meters, stirring diameter of more than 5 meters (call for details), agitator surface coating, spraying and body carbon steel, stainless steel, titanium and other materials can be selected.
2. Mature research and development, providing customers with a complete set of solutions
More than ten years of experience in technology research and development, a mature technical team, professional paddle Selection and corresponding simulation calculation of stirring speed, tailor-made solutions for customers.
3. Strict material selection standards, five material selection guarantees
The company has cooperated with well-known material suppliers for many years, and the selected raw materials (plates, round pipes, round bars, etc.) are all provided by large domestic steel manufacturers.Supporting the company's specific five-item material guarantee standard, it is stable and reliable.
4. Exquisite processing equipment and technology
The products are formed by high-tech laser cutting and blanking, automatic processing by CNC machine tools, and self-made finished products in the whole process of compression molding, welding and assembly.
5. Eight unique quality inspection standards
The company specially formulates and adheres to eight major production testing standards to ensure that every manufactured product meets the standards and customer needs, which greatly improves the rate of finished products.
6. Fast delivery
Based on mature R&D technology and scientific production process, the whole process is self-made, and each production and inspection link is systematically controlled.Better shorten the production cycle to meet customer needs.
7. Non-standard customization, rich experience
The company provides non-standard customized solutions for various scenarios and customer needs throughout the year, hundreds of product processes and combinations, and more than a thousand types of non-standard scenario customized solutions to meet customers' all-round product needs.
