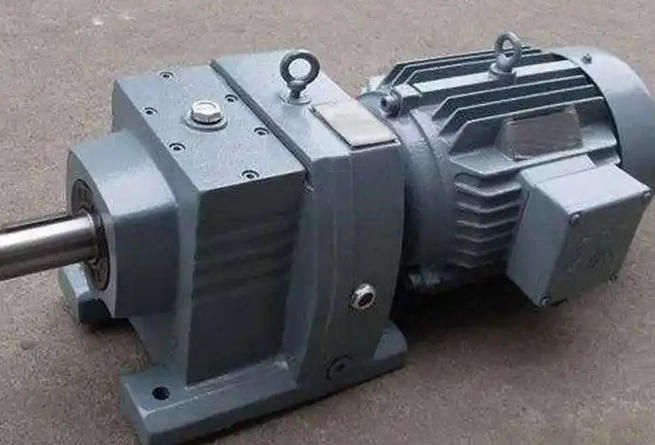

The assembly accuracy deviation of the R87-23.40-5.5KW gear reducer not only affects the transmission efficiency and noise level, but also causes a series of chain mechanical failures. In severe cases, it may lead to complete machine failure or unplanned shutdown. Combined with the characteristics of this model that is often used in heavy-duty and continuous operation conditions, the problems caused by assembly deviations far exceed the scope of local wear and tear, and can be summarized into the following categories:
1. Abnormal bearing wear and early failure
During the assembly process, if the gear axes are not parallel or the coaxiality of the box bearing hole is out of tolerance (>0.02mm), uneven stress on the inner and outer rings of the bearing will occur, resulting in 'unbalanced loading' .
Eccentric wear will cause local fatigue spalling of the bearing raceway, deformation of the cage, and even cause "locking".
One case shows that due to insufficient temperature control during box processing, the hole diameter deviation was 0.05mm, and the bearing life after assembly was shortened by more than 60%.
2. Abnormal gear meshing and reduced transmission performance
Insufficient assembly accuracy can easily cause gear center distance deviation, uneven tooth side clearance or offset of contact spots.
If the meshing position of the helical gear is offset, the load on the tooth surface on one side can increase by 2 to 3 times, accelerating pitting and wear.
The transmission efficiency may drop from above 96% to below 90%, causing the oil temperature to rise (>80°C) and the grease to fail at an accelerated rate.
3. Seal failure and lubricating oil leakage
When the output shaft or input shaft is assembled eccentrically, the friction between the oil seal lip and the shaft surface will be uneven, resulting in increased local wear.
Actual measurement data shows that when the oil seal coaxiality is >0.1mm, the monthly leakage can reach more than 50mL (the standard should be ≤5mL).
Oil leakage further causes dry wear of bearings due to lack of oil, forming a vicious cycle.
4. Increased vibration and risk of resonance
When the concentricity deviation exceeds 0.2mm, high-speed operation can easily cause vibration of the whole machine (amplitude >0.15mm), resulting in loosening of anchor bolts and breakage of coupling bolts.
Long-term vibration may also damage the basic structure and affect the stability of peripheral equipment.
A factory once failed to use a laser alignment instrument for calibration, resulting in the R87 reducer"s feet cracking after one week of operation.
5. Motor overload and control system frequent alarms
The eccentric load increases the transmission resistance and causes the motor current to increase abnormally, often exceeding the rated value by 1.2 times.
The thermal relay or frequency converter frequently trips due to overload, affecting the continuous operation of the production line.
Such problems are often misjudged as electrical faults, but are actually rooted in mechanical assembly.
6. Chain damage and domino effect
If the initial deviation is not handled in time, it may cause a 'domino effect':
bearing damage → metal fragments entering the gear meshing area → scratches or broken teeth on the tooth surface → damage to the motor rotor.
Maintenance costs have risen exponentially, far exceeding the initial adjustment investment.
