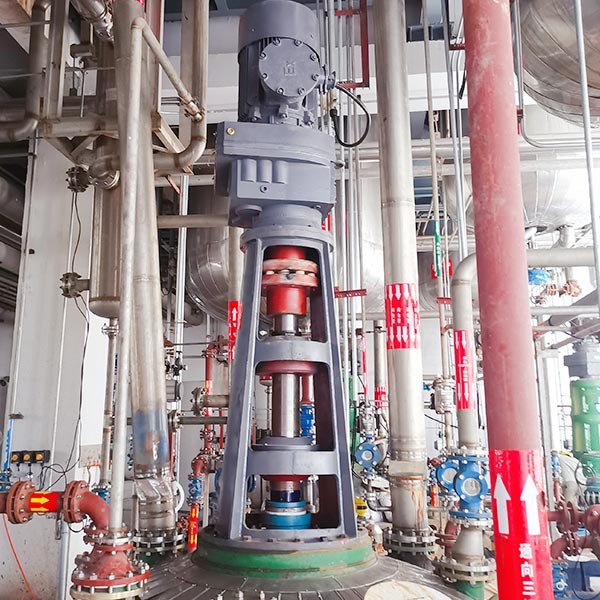

Introduction to Chemical Reactor Stirrer
The chemical reaction kettle agitator is mainly composed of a motor, a reducer, a water jacket, a sealing cylinder, a support body, an outer magnetic steel body, an inner magnetic steel body, upper and lower stirring shafts, paddles, and a control box.
The motor and reducer are installed on the water jacket body, the outer magnetic steel body is installed on the motor and reducer through the rotary body assembly, the inner magnetic steel body is installed on the shaft of the supporting body, and is covered by the sealed cylinder, and the lower end of the upper shaft It is integrated with the lower shaft by a coupling.The motor and reducer drive the outer magnetic steel body to rotate, and drive the inner magnetic steel body installed inside the sealed cylinder to rotate through magnetic coupling. The shaft of the inner magnetic steel body and the stirring shaft are connected as a whole with a coupling to stir the materials. .Since the inner magnetic steel body and the stirring shaft are installed inside the sealing cover, and the plane between the sealing cylinder and the kettle body can be pressed with metal graphite pads by bolts, thus fundamentally changing the relationship between the stirring shaft and the kettle body The dynamic seal 'is 'static seal', thus realizing no leakage under high temperature and high pressure.
Application field
It is especially suitable for the stirring reaction of flammable, explosive, highly toxic and precious media used in pilot tests and large-scale production under high temperature, high pressure, vacuuming and other conditions. It completely solves the leakage problem that cannot be overcome by mechanical seals and packing seals, and ensures that The environment and the person are inviolable.
Product Series

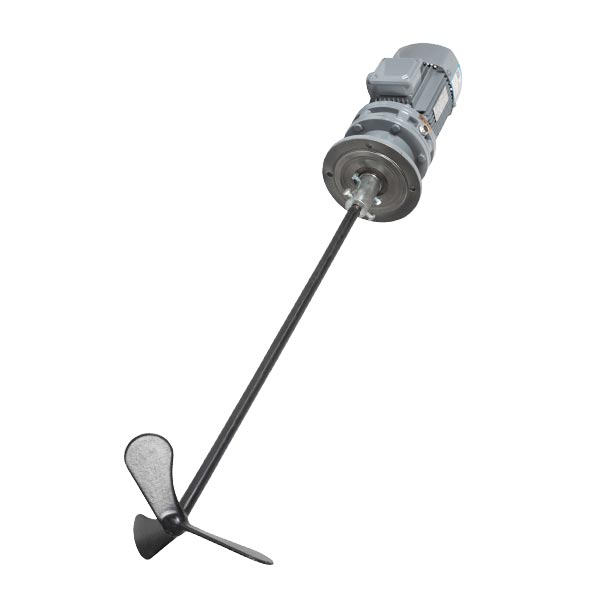

Cycloid mixer series
Power: 0.37kw, 0.55kw, 0.75kw, 1.1kw, 1.5kw, 2.2kw, 3kw, 4kw, 5.5kw, 7.5kw, 11kw, 15kw... (consult for details)
Specifications: 380v (three-phase), 220v (single-phase), anti-exposure motor, anti-static, etc.
Stirrer material: 304 stainless steel, 304 stainless steel lined with rubber, PO (lined with plastic), PP, PTFE, etc.
Stirrer and supporting form, size, specification, material: according to customer demand, stirring environment and motor power
Speed regulation mode: non-adjustable speed motor
Speed mode: fixed, the speed is selected according to the customer's mixing purpose
Color: optional according to customer needs
Weight: According to selected or customized models
Packing: wooden box
F series gear mixer
Model: F37~F157 (consult for details)
Power: 0.18kw~75kw
Specifications: 380v (three-phase), anti-exposure motor, anti-static, frequency conversion, etc.
Speed regulation mode: speed regulation, non-speed regulation motor
Speed mode: fixed, the speed is selected according to the customer's mixing purpose
Color: optional according to customer needs
Weight: According to selected or customized models
Packing: wooden box
K series gear mixer
Model: K37~K187 (consult for details)
Power: 0.18kw~75kw
Specifications: 380v (three-phase), anti-exposure motor, anti-static, frequency conversion, etc.
Speed regulation mode: speed regulation, non-speed regulation motor
Speed mode: fixed, the speed is selected according to the customer's mixing purpose
Color: optional according to customer needs
Weight: According to selected or customized models
Packing: wooden box
R series gear mixer
Model: R17~R177 (consult for details)
Power: 0.18kw~75kw
Specifications: 380v (three-phase), anti-exposure motor, anti-static, frequency conversion, etc.
Speed regulation mode: speed regulation, non-speed regulation motor
Speed mode: fixed, the speed is selected according to the customer's mixing purpose
Color: optional according to customer needs
Weight: According to selected or customized models
Packing: wooden box
S series gear mixer
Model: S37~S100 (consult for details)
Power: 0.18kw~75kw
Specifications: 380v (three-phase), anti-exposure motor, anti-static, frequency conversion, etc.
Speed regulation mode: speed regulation, non-speed regulation motor
Speed mode: fixed, the speed is selected according to the customer's mixing purpose
Color: optional according to customer needs
Weight: According to selected or customized models
Packing: wooden box
Little King Kong Blender
Model: MYJG200-10 (consult for details)
Specifications: 380v (three-phase), 220v (single-phase), anti-exposure motor, anti-static, frequency conversion, etc.
Speed regulation mode: speed regulation, non-speed regulation motor
Speed mode: fixed, the speed is selected according to the customer's mixing purpose
Color: optional according to customer needs
Weight: According to selected or customized models
Packing: wooden box
Production advantages of mixer products
1. Large product coverage and wide application range
The products are diverse, satisfying the mixing scenes of solid & solid, liquid & liquid, solid & liquid, gas & liquid and other combinations.According to the various environments of customer applications, top, side and bottom installation methods are provided.According to the flow direction, there are hundreds of mature craft products such as propulsion type, turbine type, frame type, anchor type, spiral belt type, screw type, spiral belt + screw type, etc.The equipment process can reach agitator length of more than 12 meters, stirring diameter of more than 5 meters (call for details), agitator surface coating, spraying and body carbon steel, stainless steel, titanium and other materials can be selected.
2. Mature research and development, providing customers with a complete set of solutions
More than ten years of experience in technology research and development, a mature technical team, professional paddle Selection and corresponding simulation calculation of stirring speed, tailor-made solutions for customers.
3. Strict material selection standards, five material selection guarantees
The company has cooperated with well-known material suppliers for many years, and the selected raw materials (plates, round pipes, round bars, etc.) are all provided by large domestic steel manufacturers.Supporting the company's specific five-item material guarantee standard, it is stable and reliable.
4. Exquisite processing equipment and technology
The products are formed by high-tech laser cutting and blanking, automatic processing by CNC machine tools, and self-made finished products in the whole process of compression molding, welding and assembly.
5. Eight unique quality inspection standards
The company specially formulates and adheres to eight major production testing standards to ensure that every manufactured product meets the standards and customer needs, which greatly improves the rate of finished products.
6. Fast delivery
Based on mature R&D technology and scientific production process, the whole process is self-made, and each production and inspection link is systematically controlled.Better shorten the production cycle to meet customer needs.
7. Non-standard customization, rich experience
The company provides non-standard customized solutions for various scenarios and customer needs throughout the year, hundreds of product processes and combinations, and more than a thousand types of non-standard scenario customized solutions to meet customers' all-round product needs.
