1. Highly modular design: It can be easily equipped with various types of motors or other power inputs.The same model can be equipped with motors of various powers.It is easy to realize the combined connection between various models. 2. Transmission ratio: fine division and wide range.Combined models can form a large transmission ratio, that is, output extremely low speed. 3. Installation form: the installation position is not limited. 4. High strength and small size: the box body is made of high-strength cast iron.The gears and gear shafts adopt the gas carburizing, quenching and fine grinding process, so the bearing capacity per unit volume is high. 5. The gear with hard tooth surface is made of high-quality alloy steel, the surface is hardened by carburizing and quenching, the teeth are finely ground, the transmission is stable, the noise is low, and the bearing capacity is large. 6. Low noise: The main components of the reducer are precision-processed, assembled and tested carefully, so the noise of the reducer is low.

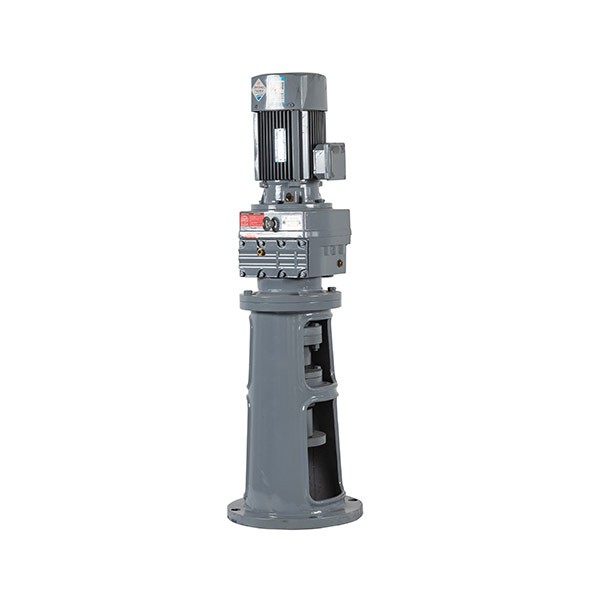

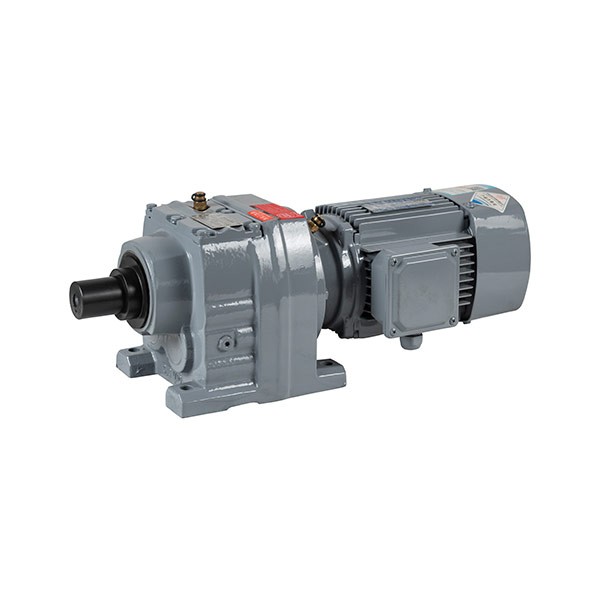

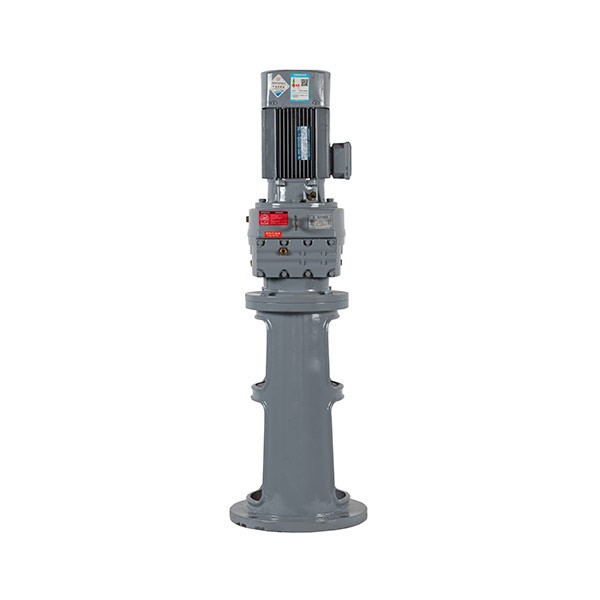

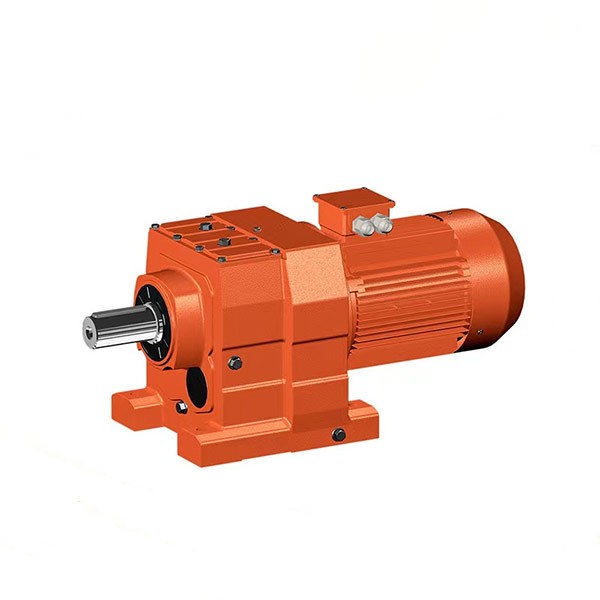

R series gear reducer
Model: R17~R177 (consult for details) Power: 0.18kw~75kw Specifications: 380v (three-phase), anti-exposure motor, anti-static, frequency conversion, etc. Speed regulation mode: speed regulation, non-speed regulation motor Speed mode: fixed, the speed is selected according to the customer's mixing purpose Color: optional according to customer needs Weight: According to selected or customized models Packing: wooden box
Model and parameters
Model representation method
Note:
1. Please specify if connecting flange is required. 2. The input shaft type does not have all the contents of the motor. 3. If the direction of the junction box is not specified, it defaults to the 0 degree position in the installation form.When the entry position is not specified, it defaults to the X position. 4. If there are special requirements for the rotation direction of the output shaft and the rotation direction of the input shaft, please contact the customer service personnel for clarification.
