The core of choosing a planetary reducer or a helical gear reducer is to weigh the relationship between accuracy, volume, torque, cost, and durability. To put it simply, planetary reducers are "precision special forces", while helical gear reducers are "industrial snake oil".
1. Core comparison between planetary reducer and helical gear reducer :
2. The difference between the two and Selection suggestions:
1. Planetary reducer: born for high precision and compact space
Inside the planetary reducer, multiple gears share the load at the same time through the precise cooperation of the sun gear, planet gear and internal ring gear.
(1) Core advantages of planetary reducer:
Extremely high precision: its return gap (backlash) is very small, its positioning is precise, and it can perfectly cooperate with the servo motor to complete complex motion control.
Compact size and high torque: Under the same volume, it can output the maximum torque, and the input shaft and output shaft are on the same straight line (coaxial), which saves installation space.
Strong impact resistance: Multiple teeth mesh at the same time to share the load, and can withstand frequent starts, stops and large impact loads.
(2) Shortcomings: The manufacturing process is complex, resulting in high prices, and the requirements for lubrication and maintenance are relatively high.
(3) Suitable scenarios: Scenarios with strict requirements on positioning accuracy, response speed and volume, such as industrial robot joints, CNC machine tool turntables, automated warehousing equipment, aerospace and military equipment, etc.

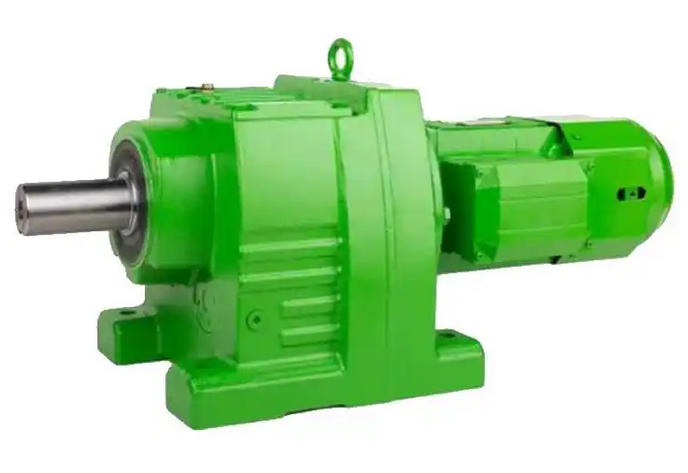

2. Helical gear reducer: born for continuous heavy load and cost-effectiveness
The teeth of the helical gear are spiral-shaped and the meshing process is progressive, which makes its transmission very smooth.
(1) Core advantages:
Smooth operation and low noise: The spiral tooth design reduces the impact during gear meshing, and the vibration and noise are very small, suitable for long-term continuous operation.
Durable and cost-effective: the structure is relatively simple and solid, the failure rate is low, and maintenance is easy. It is extremely advantageous in projects with limited budgets and long-term stable operation.
High transmission efficiency: the efficiency can usually reach more than 95%, which is very power-saving and energy-saving.
(2) Shortcomings: The size is relatively large, the accuracy and torque density are not as good as the planetary reducer, and it does not have a self-locking function.
(3) Suitable scenarios: Most general industrial fields, especially those that require efficient, continuous, heavy-load operation, such as assembly line conveyors, large mixers, mining crushers, fans, water pumps, cranes, etc.
3. Final Selection suggestion (three steps)
(1) Look at accuracy and space: If your equipment space is very tight, or you have extremely high requirements for stopping and positioning accuracy (for example, the error must be controlled at the millimeter or even micron level), do not hesitate to choose a planetary reducer.
(2) Depends on the budget and working conditions: If the equipment does not require high accuracy, but requires continuous operation 24/7, and the purchase cost and maintenance convenience of the equipment are important, helical gear reducers are a more pragmatic choice.
(3) Look at the load characteristics: If the load often has severe impacts (such as frequent starts and stops, forward and reverse rotation), the planetary reducer has stronger impact resistance; if it is a steady and continuous heavy load, the helical gear reducer can do the job well.
