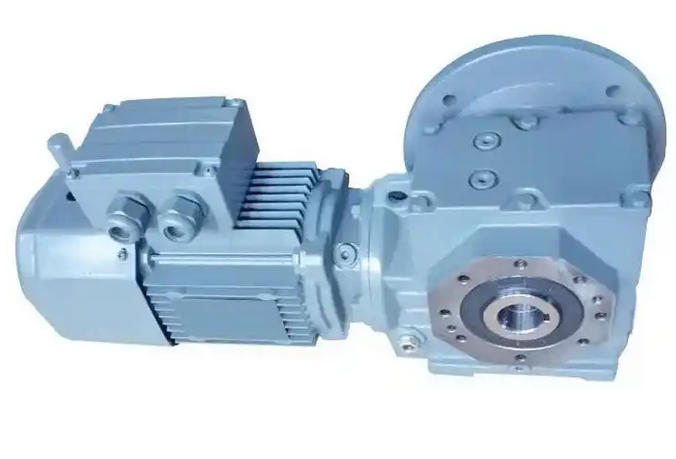

In a low temperature environment, the efficiency of the SAF series reducer will be significantly reduced, and the energy consumption will increase accordingly.
The specific change principles and performances are as follows:
1. Reasons for reduced efficiency and increased energy consumption
1. The viscosity of lubricating oil increases sharply, and the oil churning loss increases:
Low temperatures can cause the gear oil inside the reducer to become very viscous (similar to how honey turns into a sticky clump in the refrigerator). The fluidity of viscous lubricating oil becomes poor, and the gear needs to overcome greater internal resistance to stir the oil during operation (that is, the oil stirring loss increases), which directly leads to a decrease in transmission efficiency.
2. Increased frictional resistance and difficulty in starting:
Because the lubricating oil cannot smoothly reach the contact surfaces of each gear and bearing, there may even be a brief lack of lubrication in the early stages of startup. In order to overcome this increased mechanical friction and internal "parasitic resistance", the motor must output more power to drive the reducer, resulting in an increase in overall energy consumption.
3. Hardening of seals:
Low temperature will make the rubber seal harden and lose elasticity, which not only increases the friction resistance during rotation, but may also lead to a decrease in sealing performance, triggering the risk of oil leakage, and further affecting the operating status.
2. Response and improvement plans
In order to ensure the stable operation of the SAF series reducer and control energy consumption under low temperature conditions, the following measures can usually be taken:
Replace special low-temperature lubricant: Use special lubricating oil or grease with good low-temperature performance. This type of lubricant can still maintain low viscosity and good fluidity under extremely cold conditions, and can significantly reduce oil churning losses and friction losses.
Install a preheating or insulation device: Install a thermal insulation cover outside the reducer to reduce heat loss, or configure preheating devices such as electric heating belts and heating plates. Preheat the reducer before starting so that its internal temperature reaches a suitable working range.
Reserve a safety margin when Selection: When installing equipment Selection, if the working environment temperature is lower than -10°C, it is recommended to appropriately increase the safety factor (usually 0.3~0.5) based on conventional calculations to offset the torque attenuation and efficiency loss caused by low temperature.
Choose low-temperature-resistant materials: For extremely cold environments (such as -25°C or even below-40°C), you can consider customizing a reducer using low-temperature-resistant sealing materials and special cold-resistant metal materials to prevent components from becoming brittle and damaged due to low temperature.
